The number of fibers a standard fiber optic splice closure can hold ranges considerably depending on its model and size. For example, compact closures may house 12, 24 or 48 fibers, while larger enclosures can handle 144C to 1152C we have. High-capacity closures might have multiple splice trays/modules for many splices, which are distributed along extensive networks.
Fiber optic splice enclosures protect them by creating a closed container without access to environmental factors like moisture, dirt, and temperature. Many times, these come with watertight seals such as O-rings or gaskets to guarantee long-term reliability when they are installed outdoors.
The fiber optic closure provides a sealed enclosure to prevent moisture or other contaminants from entering and damaging the delicate fibers, which can result in signal loss or degradation. The closure also offers mechanical protection against impacts, bending, and pulling forces that could damage the fiber optic cables.
1U MPO/MTP patch panel can indeed support both single-mode and multi-mode fibers, as the MPO/MTP fiber patchcord itself is designed to work with either fiber type, and many panels are built to accommodate both long-distance, low-loss single-mode needs and high-bandwidth, short-distance multi-mode applications; however, it's crucial to check that the panel's internal components are optimized for both fiber types to maintain signal quality, and some panels may have features to differentiate between single-mode and multi-mode ports for easier management.
MPO/MTP fiber patch panels are not typically designed for direct outdoor use, but they can be used in outdoor installations with proper precautions. For example, it must be housed in a suitable enclosure. The enclosure should be weather - proof, with a high - quality seal to prevent water and dust ingress. It should also provide some level of insulation to protect against temperature changes. Additionally, the enclosure may need to have features such as vents to allow for proper air circulation and prevent condensation buildup inside.
In many cases, it's possible to mix different fiber - count MPO|MTP patch cords in the same MPO|MTP patch panel, but it depends on the panel's design and compatibility. Some patch panels are more flexible and can accommodate a mix, while others may have restrictions. UnitekFiber as a professional fiber optic patch panel manufacture, we provide OEM and ODM service to support your customized required, please kindly contact at sales@unitekfiber.com for more detail.
In general, it depends on the network design and equipment compatibility. Some network switches and routers allow for a mix of different transceiver modules as long as they support the same data rate and protocol standards. However, it's important to ensure that the overall network performance and reliability are not compromised. For example, you might be able to use a combination of 10G SFP+ and 40G QSFP+ modules in a network if the equipment can handle the different port speeds and configurations.
Higher data rate modules (e.g., 100Gbps compared to 10Gbps) can significantly improve the speed at which data is transferred between network devices. This is essential for applications that require large amounts of data to be transmitted quickly, such as high-definition video streaming, large data backups, and high-performance computing. However, using a higher data rate module also requires compatible network infrastructure and may have implications for power consumption and cost.
Normally, no. SFP and QSFP have different form factors and pin-outs, so an SFP won't fit directly. Also, QSFP ports are for 4-channel, higher-speed operation, while SFP is single-channel and lower speed (1.25G).
The fiber optic splice enclosure can be made of various materials. Indoor enclosures are often made of plastic for its light weight and ease of handling, like PP, ABS or etc. Outdoor enclosures are typically made of metal, such as aluminum or steel, for better durability and protection against harsh weather conditions and physical impacts. Some enclosures may also have rubber gaskets or seals to prevent water and dust ingress.
In some cases, a fiber optic enclosure can be reused. If the fiber enclosure is in good condition, the seals are intact, and the internal components such as splice trays and cable guides are not damaged, it can be used again. However, before reusing, it's essential to thoroughly clean and inspect the closure for any signs of wear, damage, or contamination. Also, make sure that the reused closure is compatible with the new fiber optic installation in terms of cable capacity and other requirements.
Yes, MPO connectors can be APC (angled physical contact) polishing types for single-mode and multi-mode. APC is a type of polishing method used in fiber optic connectors to achieve a low back reflection and high return loss. The APC polishing angle is typically 8 degrees, which helps to minimize reflections and improve the overall performance of the connector.
The normal recommendation for MPO|MTP fiber optic patch cord is the minimum bend radius under tension during pulling is 20 times the diameter of the fiber optic cable(d). When not under tension (after installation), the minimum recommended long term bend radius of MPO|MTO fiber optic patch cord is 10 times the fiber optic patchcord diameter.
Checking the connector type of transceiver module, such as LC, SC, or ST. Confirming whether to use single-mode or multi-mode of the fiber module. Make sure the wavelength of the fiber transceiver, such as 850nm, 1310nm, or 1550nm. DDM support, and the speed of optical transceiver. You also could dedicated sales team at sales@unitekfiber.com, our team of experienced professionals is here to assist you every step of the way.
The primary difference between QSFP+ fiber module and SFP+ fiber transceiver is the quad form. QSFP+ optical module is an evolution of SFP+. The QSFP+ optical module support four 10Gbit/s channels carrying 10-Gigabit Ethernet, 10G Fiber Channel, or InfiniBand, which allows for 4*10G cables and stack-able networking designs that achieve better throughput. SFP+ transceivers are typically offered at 10Gbps totally.
SFP fiber module is commonly used in Ethernet networks and supports data rates up to 10 Gbps, while FC optical module is designed for high-speed SANs and can achieve data rates up to 128 Gbps. Additionally, FC fiber transceiver offers longer transmission distances compared to SFP.
Since fiber patch cord are not conductive, the mere ingress of water into a fiber patch lead will not affect signal transmission. Nevertheless, prolonged contact of the optical fiber jumper with water can affect the strength of the optical transmission signal. The diffusion of water into the core of optical fibers can affect the transmission properties. An increase in the water will result in an increased loss of high order modes, a reduction in numerical aperture, and increased microbending losses if there is coupling to these higher order modes.
The LC Uniboot fiber patch cord is a fiber optic cable terminated with LC Uniboot connectors on both ends. The LC Uniboot fiber patch is in small size, which is save more space when using. It has two major application areas: computer work station to outlet and fiber optic patch panels connect distribution center. Ideal for data center, SAN, Enterprise/Campus and Telco central office applications.
FTTA fiber patch cord, short for Fiber to the Antenna Cable, is a specialized type of waterproof fiber jumper designed for outdoor telecommunications infrastructure. The FTTA fiber patch cord primary purpose is to connect remote radio units (RRUs) or antennas to base station equipment in wireless communication networks.
FTTA (Fiber to the Antenna): FTTA, on the other hand, is a fiber-optic network architecture designed to extend fiber-optic connections directly to the antennas of wireless communication base stations to support cellular networks and mobile communications. FTTH (Fiber to the Home): FTTH is a fiber optic network architecture designed to extend fiber optic connectivity directly into the homes of home users. It is used to provide home communications services such as high-speed broadband Internet, television and telephone services.
Standard duplex LC connectors are consist of two LC simplex connectors with each connector containing a single optical fiber through an LC duplex clip. The LC Uniboot connector is an improved LC duplex connector. Two optical fibers are located in the 2.0mm or 3.0mm jacket at the same time, realizing the function of a single tube and dual core, which can significantly reduce the space requirements for wiring.
Uniboot fiber optical patch cord is an innovative fiber optic patch cord that uses dual-fiber single-tube, one-piece tail sleeve design to save more space (up to 50%) and improve efficiency in data centers or other environments that require high-density fiber optic connections.
The wavelength used for fiber optic transmission depends on the type of fiber and the transmission technology being used. Generally, single-mode fiber uses a wavelength of 1310 nm or 1550 nm, while multi-mode fiber typically uses 850 nm or 1300 nm. The reason why these wavelengths are utilized in fiber optics is due to their ability to experience the least amount of attenuation or signal loss as light travels through the fiber. This is because the attenuation rate of a wave is directly proportional to its length; longer waves experience lower attenuation rates compared to shorter waves.
OM4 MPO/MTP fiber optic jumper is developed for VSCEL laser transmission and supports 10G/S connection distance up to 550M while OM3 MPO/MTP fiber jumper is 300M. The effective bandwidth of OM4 fiber cable is more than double that of OM3 fiber cable. OM4 MPO/MTP jumper is 4700MHz.km, OM3 MPO/MTP fiber jumper is only 2000MHz.km
Yes, bad cable management can have a significant impact on airflow within a system. When cables are improperly organized or tangled, they can obstruct the path of airflow through the system. This can lead to reduced cooling efficiency and increased operating temperatures for the components.
Yes, fiber optic adapter faceplates are available in high-density configurations to accommodate a large number of connectors in a limited space. These high-density faceplates often utilize technologies like MPO/MTP connectors to maximize the number of connections in a compact form factor.
Yes, cable managers can be used for both fiber optic and copper cables. However, it is important to ensure that the cable manager is designed and rated for the specific type of cable being managed. For example, fiber optic cables require different handling and management techniques compared to copper cables.
The steel wire in a figure 8 fiber optic cable serves as a strength member and provides additional support for the optical cable during aerial installation. The steel wire enhances the optical cable's overall tensile strength, allowing it to withstand the tension and stresses experienced during installation and while suspended between aerial structures. It helps prevent the cable from sagging or stretching excessively under its weight, maintaining proper fiber optic performance.
Aerial fiber optic cable are suspended between support poles or structures, and the optical cable's weight can create tension. The pole span distance determines the amount of tension exerted on the optical cable. Longer pole spans may result in higher tension levels, which can negatively impact the optical cable's performance and longevity. By considering the pole span distance, engineers can ensure that the optical cable remains under the allowed tension limits.
Installing fiber optic cable in ducts typically involves the following steps:
1. Duct Preparation: Ensure that the duct is clean and free from any debris or obstructions that may hinder cable installation. Check for any damaged sections that might require repair or replacement.
2. Cable Protection: To protect the optical cable from any potential hazards within the duct, it is recommended to use inner ducts or conduits. These provide an additional layer of physical protection and make future optical cable upgrades or replacements easier.
3. Cable Termination: Once the optical cable is fully installed through the duct, the connectors at the optical cable ends need to be terminated. This involves carefully stripping the cable's protective jacket, cleaning the fiber ends, and attaching the connectors using fusion splice or mechanical splice techniques.
Fiber optic duct refers to a specialized tube or channel designed for housing and protecting fiber optic cable. It provides a secure pathway for the cables and helps to prevent damage, bending, or other disturbances that can reduce the performance of the optical signal.
GYTA33 optical cable are designed for use in ducts, which can act as a protective optic fiber. They are suitable for duct installation due to their strength, durability, water resistance, and protection against environmental factors. The fiber optic cable have a flexible design, making them easy to install in ducts with bends and corners.
Yes, GYFTY fiber optic cable can be installed on existing utility poles. GYFTY optical cable is commonly used for outdoor aerial installations, including utility pole deployments. The optical cable can be attached to the cross-arms or brackets on the poles using appropriate hardware designed for aerial fiber optic installations. This allows for efficient and cost-effective deployment of fiber optic networks by utilizing existing infrastructure.
Yes, air blown fiber optic cable with an HDPE sheath is designed to withstand harsh environments. HDPE is known for its excellent resistance to moisture, chemicals, and environmental stressors. This makes it suitable for outdoor and rugged applications where the optic cable may be exposed to extreme temperatures, UV radiation, water, and other challenging conditions. The HDPE sheath provides a protective barrier, ensuring the integrity and durability of the fiber optic cable even in harsh environments.
Single mode patch cable are typically used for long-distance applications and higher bandwidth requirements, while multimode patch cable are generally used for short to medium distance applications with lower bandwidth requirements.
However, there are some instances where multimode patch cable may be preferred. For example, multimode cable can support more cost-effective equipment and components, and they are generally easier to install and work with. In addition, multimode patch cable can be used in applications that require high-speed data transmission over short distances, making them ideal for use in data center and LANs.
A fiber optic patch cord is typically passive, as it does not require any active components to transmit data. A passive component is one that does not require an external source of power or energy to operate. In the case of fiber optic patch cord, the optical signal is transmitted through the cable using the natural properties of light and the fiber optic material. The connectors on either end of the fiber optic patch cord simply provide a physical connection between two devices or subsystems.
Yes, it is possible to convert multimode fiber to single mode fiber, but it requires additional equipment.
Another method is to use a mode converter. A mode converter converts the MM signal into an SM signal by changing the waveguide structure of the fiber. This method can support higher distances and data rates.
There are several benefits of using fiber optic patch cable, including:
1. High Speed: Fiber optic patch cable can transmit data at extremely high speeds, allowing for quick data transfer and improved network performance.
2. Long Distance Transmission: Fiber optic patch cable can transmit signals over much longer distances than traditional copper cables with minimal signal loss.
3. Security: Fiber optic cable are difficult to tap or intercept, which makes them more secure than copper cables.
4. Durability: Fiber optic patch cable are more durable than traditional copper cables. They can withstand harsh environmental conditions.
There are numerous applications for fiber optic patch cord. Some common examples include:
1. Telecommunications: Fiber optic patch cord are widely used in telecom networks to connect equipment such as ODF, switches, and servers.
2. Data Centers: In data center, fiber optic patch cord are used to connect servers and other network devices to the central network.
3. Broadband Internet: Fiber optic patch cord are used to transmit broadband internet signals to homes and businesses.
4. Military Communications: Military organizations use fiber optic patch cord for secure and reliable communication systems.
5. Medical Equipment: Fiber optic patch cord are used in medical equipment such as endoscopes and microscopy.
6. Industrial Automation: Fiber optic patch cord are used for automation and control systems in industries such as manufacturing, oil and gas, and transportation.

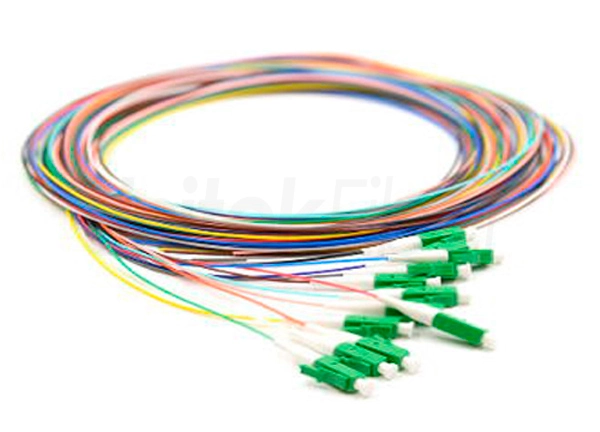

Fiber optic patch cord allow for easy connections between fiber optic cable and various network components like network switches, routers, and other networking devices. They provide a secure, stable connection that prevents signal loss and interference, which is particularly important for high-speed data transmission. Additionally, fiber optic patch cord are often used in data centers where multiple servers need to be connected to a network, allowing for rapid data transfer and minimizing latency. Overall, fiber optic patch cord are essential components of any modern data communication network that requires reliable, high-speed connections.

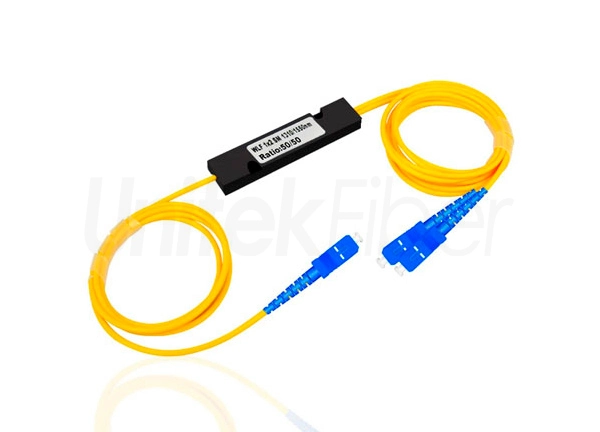

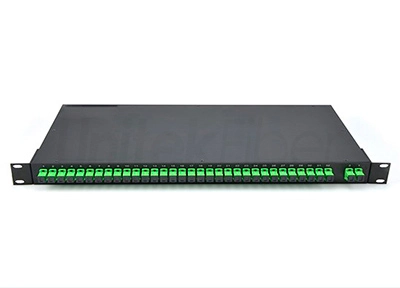

Fiber optic PLC splitter can be made from many different materials, depending on the needs and nature of the application. Some common fiber optic PLC splitter materials include metals, plastics, ceramics, and glass, among others. When selecting materials, it is necessary to consider the environmental conditions that the separator needs to withstand, such as temperature, pressure, chemical properties, etc., so as to select suitable materials to ensure the performance and reliability of the fiber optic splitter.
The operating temperature has a great impact on the use of the optical fiber SFP module. If the operating temperature of the optical fiber SFP module is too high or too low, the optical power will generally decline, the sensitivity will become lower, and the eye diagram will become worse. In addition, it will also accelerate the aging of internal devices, reduce the life of the optical fiber SFP module, and even directly damage the optical devices in serious cases.
The main reasons that affect the service life of FTTH fiber drop cable are:
①The long-term stress remaining when the laying of the optical fiber drop cable is unreasonable;
②The existence and expansion of micro cracks on the surface of the optical fiber drop cable;
③Water and water vapor molecules erode the surface of the optical fiber drop cable in the atmospheric environment.
The MGTSV fiber optical cable is mainly used in coal mines, and can also be used in such as iron mines and gold mines. Mining fiber optical cable must have flame-retardant properties. The outer sheath of this mining fiber optic cable is a blue PVC flame-retardant sheath or a blue LSZH-FR sheath.
Pre-terminated fiber optic cable are relative to fusion or quick connection technology. The manufacturing and testing of pre-terminated fiber optic cable are carried out in the specific environment of the factory to ensure the accuracy and tightness of the products and realize the rapid wiring of the project site. Pre-terminated fiber optic cable are a new type of optical fiber cabling solution for high-density, high-reliability cabling requirements, and are mainly used in data centers.
Armored steel MTP/MPO cable is a new type of optical fiber jumper, which means adding a layer of stainless steel wire to the optical fiber, and then wrapping the bare optical fiber with a layer of aramid yarn and outer sheath. While the armored steel MTP/MPO cable enhances the pressure resistance, it also ensures the same flexibility as the standard fiber jumper and various superior optical properties of the optical fiber itself. The stainless steel tape acts as the protective layer closest to the optical fiber, which can prevent damage caused by mechanical force.
The braided steel wire MTP/MPO cable can be directly apply outdoor without using a protective tube, which greatly saves space, increases the simplicity of construction and layout, and reduces construction costs. It can be applied to complex environments such as building wiring, optical connection of equipment in key computer rooms, field operations, sensor detection, FTTH, and community backbone network wiring. The stainless braided steel wire can protect the fiber patch cord from being squeezed and anti-rodent. Another application of braided steel wire fiber optic patch cord is in data center, which can provide flexible interconnection for active equipment, passive optical equipment, and cross-connects.
The fiber optic cable armored type is divided into spiral steel tape and corrugated steel tape.The spiral steel tape fiber optic cable are spiral wound around the fiber optical cable and are commonly used in indoor or outdoor application for high durability and excellent crush resistance. The corrugated armored fiber optic cable are coated steel tapes folded longitudinally around the cable, often used in outdoor application, for superior mechanical properties. Both types of armored cable can be used in harsh outdoor environment where there is too much dust and even damage caused by rodents.
The SFP optical devices at the both ends of the DAC high-speed cable. It seems the same as the optical module, but in fact it is not a real optical module, because it has no optical laser and no electronic components, and can only transmit electrical signals, not optical signals. Because of this, DAC high-speed cables are cheaper than optical modules, and can greatly save cost and power consumption in short-distance applications. It is a low-cost, high-efficiency communication solution.
①Different power consumption: the power consumption of AOC active optical cable is higher than that of DAC cable;
②Different transmission distances: In theory, the longest transmission distance of AOC cable can reach 300M, and the longest transmission distance of DAC cable is 7M;
③The transmission medium is different: the transmission medium of AOC cable is optical fiber, and the transmission medium of DAC cable is copper cable;
④Different transmission signals: AOC cable transmits optical signals, while DAC cable transmits electrical signals;
⑤The price is different: the price of optical fiber is higher than that of copper, and there are lasers at the both ends of AOC cable and DAC cable does not, so the price of AOC cable is much higher than that of DAC cable;
⑥Different volume weight: Under the same length, the volume weight of AOC cable is much smaller than that of DAC cable, which is convenient for wiring and transportation.
100G, 40G, 25G, 10G, 2.5G, 100M and mobile fronthaul networks for metropolitan area networks and access networks have corresponding metropolitan area network and access network optical modules. Among them, CFP/CFP2/CFP4 and QSFP28 SFP transceiver modules are suitable for 100G, QSFP+ transceiver modules are used for 40G networks, and 25G SFP28 optical transceiver modules are the first choice for 25G networks. 100M, 2.5G, 10G SFP modules and mobile fronthaul optical SFP modules are available in a variety of packages.
At the transmission rate 1Gb/s, 850nm, the transmission distance of ordinary 50um multimode optical fiber is 550m, 62.5um multimode fiber is 275m and new verson 50um multimode fiber is 1100m.
At transmission rate 10Gb/s, 850nm, the transmission distance of ordinary 50um multimode fiber is 250m, 62.5um multimode fiber is 100m and new verson 50um multimode fiber is 550m.
At transmission rate 2.5Gb/s, 1550nm, the transmission distance of G.652 single-mode is 100km, G.655 single-mode fiber is 390km.
At transmission rate 10Gb/s, 1550nm, the transmission distance of G.652 single-mode fiber is 60km and G.655 single-mode fiber is 240km.
At the transmission rate is 40Gb/s, 1550nm, the transmission distance of g.652 single-mode is 4km and G.655 single-mode fiber is 16km.
Yes, 5G requires fiber optic cable.
No fiber optic cable is required from the base station to the user end, but a large amount of fiber optic cables are required for data aggregation transmission from the base station. 5G is characterized by large bandwidth and low latency, which requires upgrading of transmission equipment. 5G fronthaul 25G optical modules, supporting semi-active equipment, can save fiber optical cables. The backbone network will also be expanded using Gigabit, 10 Gigabit, 100G/200G optical modules, and two-core fiber optical cables will be expanded in OTN transmission equipment, depending on the configuration method.
The applications of MPO cable are typically used for the networks between different buildings of the enterprise LAN wiring optical active equipment in the fiber optical link interconnection communication base station wiring, wiring residential quarters, industrial park computer rooms, optical signal connection in the computer room of commercial buildings building intensive wiring system optical fiber communication systems, cable television networks, telecommunication networks Local Area Networks (LANs), Wide Area Networks (WANs) and FTTx etc..
Multimode Fiber:
Multimode fibers that can propagate hundreds to thousands of modes are called multimode (MM) fibers. According to the radial distribution of refractive index in the core and cladding, it can be divided into step multimode fiber and graded multimode fiber.
Almost all multimode fibers are 50/125 μm or 62.5/125 μm in size, and the bandwidth (the amount of information transmitted by the fiber) is typically 200MHz to 2GHz. Multimode optical transceivers can transmit up to 5 kilometers through multimode optical fibers. Light-emitting diodes or lasers are used as light sources.
Single Mode Fiber:
Single mode fibers that can only propagate one mode are called single-mode fibers. Standard single-mode (SM) fiber has a refractive index profile similar to that of step-type fiber, except that the core diameter is much smaller than that of multimode fiber.
The size of single-mode fiber is 9-10/125μm, and compared with multi-mode fiber, it has the characteristics of unlimited bandwidth and lower loss. The single-mode optical transceiver is mostly used for long-distance transmission, sometimes reaching 150 to 200 kilometers. LDs or LEDs with narrow spectral lines are used as light sources.
Single-mode equipment typically operates on both single-mode fiber and multi-mode fiber, while multi-mode equipment is limited to operating on multi-mode fiber.
Fiber Optic Cable is a communication cable composed of two or more optical fibers and cladding layers. Generally, lasers are used for internal signal transmission of optical fibers. It has the characteristics of high transmission rate, large transmission capacity, and long transmission distance.
If the Internet is compared to an information highway, and fiber optic cables are like the cornerstone of the highway. So how do fiber optic cables work?
At the transmitting end, the information to be transmitted, such as speech, is first converted into an electrical signal, which is transmitted through a laser to a laser beam. The intensity of the light varies with the frequency of the electrical signal and is transmitted through the optical fibers. At the receiving end, the detector receives the optical signal, converts it into an electrical signal, and restores the original information after processing.
There are two types of fibre optic cable-Single mode and Multimode. The diameter for single-mode fiber is 9/125 microns and allows only one mode of light transmission. It is typically used for long-distance, high-bandwidth applications in telecommunications companies and universities.
The diameter for multimode fiber are typically 50/125 and 62.5/125 microns, allowing multiple modes of light transmission. It is usually used in short-distance applications such as local area networks to transmit data,audio, video and other information. The 10G multimode fiber is a laser-optimized version of the 50/125 multimode fiber, designed for 850nm VCSELs lasers. It is an ideal 10G solution for data center.
MPO|MTP connectors and optical fiber cables can be assembled to produce various forms of MPO/MTP cable. At present, the factory assembly of MPO|MTP cable can up to 6-144 cores, among which 12 cores and 24 cores MPO/MTP cables are more common. 40G MPO|MTP fiber patch cord generally use 12 cores MPO multimode connector; 100G MPO|MTP fiber patch cord generally use 24 cores MPO connector. At present, there are 16 cores and 32 cores MPO connectors in the market, which will become the best solution for low-latency and ultra-high-speed transmission of the next-generation 400G network.
According to Fiber Mode, MTP/MPO cable types include multimode OM1/OM2/OM3/OM4/OM5 and single mode OS1/OS2 cables. Multimode OM1/OM2/OM3/OM4/OM5 MTP/MPO cables are suitable for short distance transmission, allowing 40 Git/s maximum transmission distance of 100m or 150m respectively. Single-mode OS1/OS2 MTP/MPO fiber cables are suitable for long-distance transmission, such as in Metropolitan Area Networks (MANs) and PON (Passive Optical Networks). With less modal dispersion, the bandwidth of OS2 is higher than OM3/OM4.
The transmission interface of the sfp optical transceiver inputs an electrical signal with a certain code rate, and after being processed by the internal driver chip. The modulated fiber optical signal of the corresponding rate is emitted by the driving semiconductor laser (LD) or light-emitting diode (LED). The optical signal is converted into an electrical signal by a photodetector diode, and an electrical signal of a corresponding code rate is output after passing through a preamplifier.
Optical transceiver can be divided into commercial grade (0℃～70℃), extension grade (-20℃～85℃), and industrial grade (-40℃～85℃) according to the working temperature range. Industrial-grade optical transceiver refer to which can be used in harsh working environments with high and low temperature differences, and have the advantages of strong durability and adaptability.
CWDM optical transceiver using CWDM technology, which is used to realize the connection between existing network devices and CWDM multiplexers or demultiplexers. When used with a CWDM multiplexer or demultiplexer, a CWDM optical transceiver can increase network capacity by transmitting multiple data channels with individual optical wavelengths (1270nm to 1610nm) on the same single fiber.
The digital diagnosis function is a cost-effective performance monitoring method, which can monitor important performance parameters such as optical transceiver transmit optical power, receive optical power, temperature, supply voltage, laser bias current and warning information. With the digital diagnosis function, the network management unit can access the optical transceiver module through the two-wire serial bus for parameter monitoring, and finally can quickly find the fault location in the optical fiber link, simplify maintenance work, and improve system reliability.
Yes, but only if it's an Ethernet cable. One end must be plugged into a router or a network hub that is connected to a modem. You can use Ethernet fiber patch cable to connect your router to a modem.
Cat5e network fiber cable can only be used in Gigabit Ethernet, the maximum transmission distance can reach 100m; while Cat6 network cable can be used in both Gigabit Ethernet and 10 Gigabit Ethernet, but it is used in 10 Gigabit Ethernet, Cat6 The maximum transmission distance of the network cable is 55m.
In addition, the transmission performance of Cat5e network cable and Cat6 network cable is also different. Cat6 network cable has an internal splitter to reduce interference or near-end crosstalk (NEXT), compared to Cat5e network cable, it also improves far-end crosstalk (ELFEXT), and the return loss and insertion loss are lower, therefore, Cat6 network cable's performance is better.
The diameter of the fiber cable core for transmitting communication optical signals is only 10 microns, and its energy density is very high. Even small dirt that is invisible to the naked eye may affect transmission performance, and if dirt gets on the fiber optical core, it may burn, and the heat may melt the core, causing communication accidents. In order to prevent communication accidents caused by such serious failures, it is necessary to clean the connectors with a fiber optic connector cleaner.
The electrical interface module and optical fiber module have the following differences:
① Function difference: the role of the optical fiber SFP module is that the transmitting end converts electrical signals into optical signals, and then converts optical signals into electrical signals through optical fibers; The function of the electrical port module is to transmit electrical signals;
② Interface difference: the interface of the electrical interface module is RJ45 interface, and the interface of the optical fiber module includes LC interface, SC interface and MPO interface;
③ Difference between connecting cables: the electric interface module is usually connected with the network cable for transmission, and the optical fiber module is connected with the optical fiber jumper for transmission;
④ Difference in transmission distance: the maximum transmission distance of the electric interface module is 100M, while the transmission distance of the optical fiber SFP module can reach more than 100KM;
⑤ Device difference: the devices of the optical fiber SFP module and the electrical interface module are different. The electrical interface module does not have a laser, but the optical fiber SFP module does.
The operating temperature has a great impact on the use of the optical SFP fiber module. If the operating temperature of the optical fiber SFP module is too high or too low, the optical power will generally decline, the sensitivity will become lower, and the eye diagram will become worse. In addition, it will also accelerate the aging of internal devices, reduce the life of the optical fiber SFP module, and even directly damage the optical devices in serious cases.
As an optical transceiver module for 10G data transmission, the 10G connection between SFP+ optical fiber module and XFP fiber module is feasible. If the optical module on both sides of the optical fiber link have 10 gigabit speeds, if the SFP+ module is on one side and the XFP fiber module is on the other side, the XFP optical module and the SFP+optical module are compatible at the same wavelength and signal rate, you can directly connect to the communication.
There is no technical reason not to run fiber cable and low voltage (110~220v) electrical cables in the same conduit, it’s done regularly. you must obey codes.High voltage electrical cables can and will induce currents in conventional fiber optical cable sheaths (corona effect) which can cause them to break down prematurely, so separation distances between these is specified in outdoor aerial plant.
Installing underground fiber optic cable is also messier and more complicated than installing them aerially. You will need to excavate and bury the fiber cable, which can be time-consuming and challenging. You'll need to have a skilled technician do the job, adding to the overall cost.
One of the main complications with using fiber optic is transmission distance. Transmission distance can span meters, to hundreds of meters, and even as far as kilometers. But, the longer the distance is, the weaker the fiber optical cable link and signal become.Many practices and techniques are being implemented to improve the limitations on transmission distance.
The amount of signal loss from a fiber splitter is usually measured by its insertion loss, measured in decibels (dB). Insertion loss refers to the signal strength loss caused when the splitter distributes the input signal to the output port, that is, the difference between the input signal power and the output signal power. In general, the insertion loss of a PLC splitter will vary between different specifications and manufacturers, but its typical value is usually around 3-5dB.
Fiber splitter include no electronics and use no power. They're the community parts that put the passive in Passive Optical Network and are available in a wide range of break up ratios, including 1:8, 1:16, and 1:32. Optical PLC splitter are available in configurations from 1×2 to 1×64, such as 1:8, 1:16, and 1:32.
1x4 PLC Splitter is a fiber optic splitter communication device used to split one input optical signal into four output optical signals. It realizes signal distribution and transmission through optical planar waveguide technology, and has the advantages of low insertion loss, high reliability, and good stability.
Fiber optic splitter and switch are devices used to build networks, and they can be connected by fiber optic cable. Typically, fiber optic PLC splitter are used to split an optical signal into multiple outputs that can be connected to different devices or end nodes. The switch can connect various devices together and realize the communication between these devices by exchanging data packets. Therefore, connecting fiber optic PLC splitters to switches can help build a more flexible and efficient network system.
The FTTH terminal box is a device used in the Fiber to the Home network system. It is usually installed inside the home or in the corridor, and serves as the interface point of the fiber optical cable. In the construction of FTTH network, the fiber optical cable is connected to the FTTH terminal box through fusion splicing or plugging, and further connected to terminal equipment such as fiber optical PLC splitter or optical transceiver module through fiber optical jumper wires.
A fiber optic terminal box and a fiber optic splice closure are both used in telecommunications to protect and organize fiber optic cables, but they serve different purposes.
A fiber optic terminal box is typically installed at the end of a fiber optic cable run, where it allows for easy access to the individual fibers within the optical cable. It can be wall mount or rack mount, and its main function is to terminate the incoming fiber cable and provide a connection point for customer equipment.
On the other hand, a fiber optic splice closure is designed to join two or more optical cable together, whether they are of the same or different types. It is typically used in outdoor environments where optical cables may be exposed to moisture, extreme temperatures, or other environmental factors that could affect their performance. A fiber optic splice closure provides protection against these elements while maintaining the integrity of the splice.
CWDM (Coarse Wavelength Division Multiplexing) channels are the specific wavelengths of light used in a CWDM system to transmit multiple signals over a single fiber optic cable. CWDM technology can support up to 18 channels, each operating at a different wavelength.
The standard ITU-T G.694.2 specifies the 18 CWDM channels, which are numbered from 1270nm to 1610nm with a spacing of 20nm between each channel.
Each CWDM channel operates within a specific wavelength range, and multiplexers and demultiplexers are used to combine and separate the channels at either end of the fiber optic link. This enables different data streams or services to be transmitted simultaneously over a single fiber optic cable.
The fiber optic jumper is neither a conductor nor an insulator in the traditional sense, since it does not transmit electrical signals. Rather, it is a type of cable that is used to transmit optical signals over long distances using light.
Fiber optic jumper are made up of strands of glass or plastic fibers that are insulated with a protective coating. The fibers are bundled together within a cable and are designed to transmit light signals from one end of the cable to the other.
The fiber optic patch cable can be considered as a type of LAN cable. It is typically used to connect devices within a local area network, such as computers, routers, switches, and servers.
There are different types of LAN cables, including Ethernet cables (such as Cat5, Cat6, Cat7), fiber patch cable, and coaxial cables, each with its own characteristics and capabilities. A fiber optic patch cable may be made with one of these types of cables, depending on the requirements of the network and the devices being connected.
There are some disadvantages of fiber optic patch cable:
1. Signal loss: Each connection point between two fiber optic patch cable introduces a small amount of signal loss, which can add up over multiple connections and reduce the overall quality of the connection.
2. Breakage and damage: Fiber optic patch cable are susceptible to breakage and damage due to their small size and flexibility. They can easily get tangled, kinked or bent, leading to signal loss or complete failure.
3. Compatibility issues: Different devices may use different types of connectors, making it difficult to connect them using standard fiber optic patch cable.
Single mode and multimode fiber optic cable are quite different when it comes to size, light source, signal, and so on. So, they definitely are not interchangeable, and compatibility issues can occur when you try to connect a single mode fiber optic cable to a multimode network.
Fiber optic cable are much faster than copper cable. The fiber optic cable transmit data as light rather than the electrical data transmission used in DSL internet networks which are traditionally based on copper wire technology. As the speed of light is faster than the speed of electrons, fiber optic cable are capable of a much greater transmission speed, and also have a higher bandwidth than copper cables. Fiber optic cable are also less likely to experience interference and are more durable than their copper cable.
There is a quick and easy test you can do yourself with a laser pointer or bright flashlight. Simply shine the flashlight or laser pointer in to one end of the fiber optic patch cord, if you don't see the light come through the other end, the fiber optic patch cord is broken and will need to be replaced.
GY - Optical cable for outdoor communication
F - Non-metallic reinforcement
X - Central loose tube
T - Filling type
Y - Polyethylene protective layer
GYFXTY is a type of fiber optic cable suitable for outdoor installations. It is designed to be gel-filled, accommodate single mode fiber, incorporate FRP reinforcement, have a moisture barrier layer, utilize a PE outer sheath, and feature a fiberglass reinforced tape for added protection.
The maximum span length for ADSS (All-Dielectric Self-Supporting) cable depends on various factors including the fiber optic cable construction, fiber type, and environmental conditions. However, typically, ADSS cable are designed to have a maximum span length is 700 meters.
To determine the specific minimum distance of ADSS fiber optic cable to be maintained from electrical cable, it is necessary to consult relevant regulations and standards, such as those provided by local governing bodies, utility companies, and industry organizations like the National Electrical Safety Code (NESC) or International Electrotechnical Commission (IEC).
These regulations often consider factors such as the voltage level, insulation type, and electromagnetic field strength of the electrical cable to establish guidelines for safe separation distances. The minimum distance of ADSS fiber optic cable to be maintained from electrical cable can vary depending on these factors and can range from several meters to tens of meters.
The RTS of an ADSS fiber optic cable refers to the maximum tensile force or pulling load that the fiber optic cable can withstand without experiencing mechanical failure or damage. It indicates the maximum load at which the fiber optic cable can be safely installed and operated.
The range of RTS for ADSS fiber optic cable can vary depending on the specific design, construction, and intended application. Typically, the RTS of ADSS fiber optic cable can range from a few kilonewtons to several tens of kilonewtons. The exact value depends on factors such as the cable diameter, fiber count, strength members, and the desired safety factor.
In fiber optic cable, a gel-like substance called "filler gel" or "optic cable filling compound" is often used. The specific composition of the gel can vary depending on the manufacturer and the optic cable's intended application. The gel is typically made from a combination of polymers, such as petroleum jelly, mineral oil, or silicone compounds. These materials offer a good balance of properties, including moisture resistance, thermal stability, and mechanical protection for the optical fiber.
No, CS fiber connectors are not directly compatible with standard SFP (Small Form-factor Pluggable) optical transceivers. CS fiber connectors have a different design and interface compared to the duplex LC fiber connectors typically used in SFP optical transceivers.
No, SN fiber connectors are not directly compatible with SFP (Small Form-factor Pluggable) optical transceiver. SFP optical transceiver typically use LC (Lucent Connector) fiber connectors, which have a different design and ferrule size compared to SN fiber connectors.
DAC cables, including breakout DAC cables, have a limited bend radius that should be followed to ensure proper signal transmission and prevent damage to the DAC cable. It is generally recommended to avoid excessive bending or sharp bends in DAC cables.
A QSFP optical transceiver typically uses a 12 fiber MTP/MPO connector for optical connections. However, not all of these optical fibers are used for transmitting and receiving data.
Typically, a QSFP optical transceiver uses four of the fibers for transmitting data, and another four fibers for receiving data, with the remaining four fibers left unused. This is because QSFP optical transceiver is designed to support four separate channels or lanes of data transmission, with each lane using one fiber pair (one fiber for transmitting and one fiber for receiving).
The SN fiber connector design allows for high-density connections within transceivers. Specifically, the SN fiber connector enables four connectors (8 fibers) to be housed within one QSFP optical transceiver. This configuration provides an efficient solution for breakout applications without requiring additional fan-out optical cable or fiber patch panel.
The CS fiber connector is a type of fiber optic connector designed by Senko. It is known for its compact size and high optical performance. The CS fiber connector features a 1.25mm diameter ceramic ferrule, which is smaller than the standard 2.5mm ferrule used in traditional fiber connectors such as SC and LC fiber connector. This smaller ferrule size allows for higher fiber connector density and is particularly well-suited for high-density applications where space is limited, such as in data centers and high-speed communication networks.
Breakout DAC cable is a shielded twinax copper cable with pluggable connectors on either end. These DAC cables are commonly used in data center and networking environments to connect ports to switches, routers, servers, or data storage equipment for short transmission distances.
The connectors on each end of the DAC cable are often compatible with SFP, QSFP optical transceiver. The breakout feature refers to the design of the cable, where one end of the DAC cable terminates into multiple connectors, allowing it to connect to different devices simultaneously.
Optical transceiver module converters typically work by converting the electrical signals from one type of optical transceiver module into the format required by another type of module. This allows network administrators to use different types of optical transceiver modules interchangeably, which can be useful in situations where the existing hardware or cabling infrastructure is not compatible with a new type of optical transceiver module.
The SN fiber connector is a small form factor fiber connector designed by Senko. It features a push-pull latching mechanism and utilizes a 1.25mm ferrule size. The SN fiber connector has two LC-style ferrules in a single housing, pitched closely together at 3.1 mm apart compared to 6.25 mm in an LC duplex fiber connector. It is optimized for 400G optical transceivers and is considered a next-generation connector for high density data center applications.
Compared with traditional fiber patch cord, MPO/MTP fiber patch cord have the characteristics of small diameter and small volume, which can increase the wiring space. The special design of MPO/MTP connectors eliminates termination errors and significantly saves installation time. Each component has excellent optical and mechanical properties and relatively low insertion loss in high-speed network environments.
Yes, dust and contamination can accumulate on transceiver's connectors and cause problems such as reducing the optic launch power. To ensure better connection, we highly recommends cleaning both connectors each time you disconnect and reconnect them.
An SFP transceiver, also known as an SFP module, is just a hot-swappable, pinky-sized metal component that, when connected to another device using a cable, allows for the transmission of data, and receive data. They convert electrical signals to optical signals or vice versa, depending on the type of cable and module used.
Check your switch (or other network devices) port-supported speed and then match the correct SFP module.
Know your existing network cabling types.
Know your target link distance and link budget.
Considering the operating temperature.
Yes, different fiber optic cable types have different diameters and bend radii. For example, fiber optic cables with thicker outer sheaths or those with more robust strength members will require more space. Make sure the fiber optical enclosure can accommodate the specific cable types you're using without forcing the fiber ootic cables to bend too sharply.
