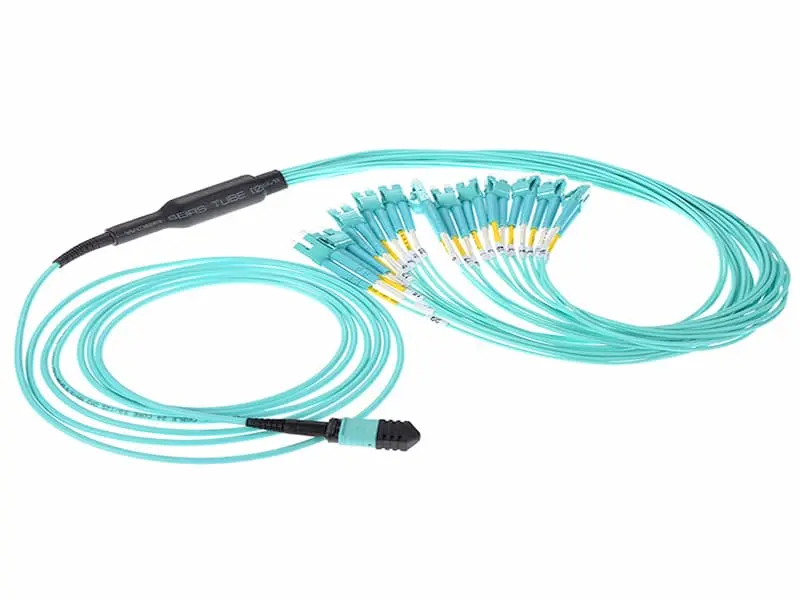

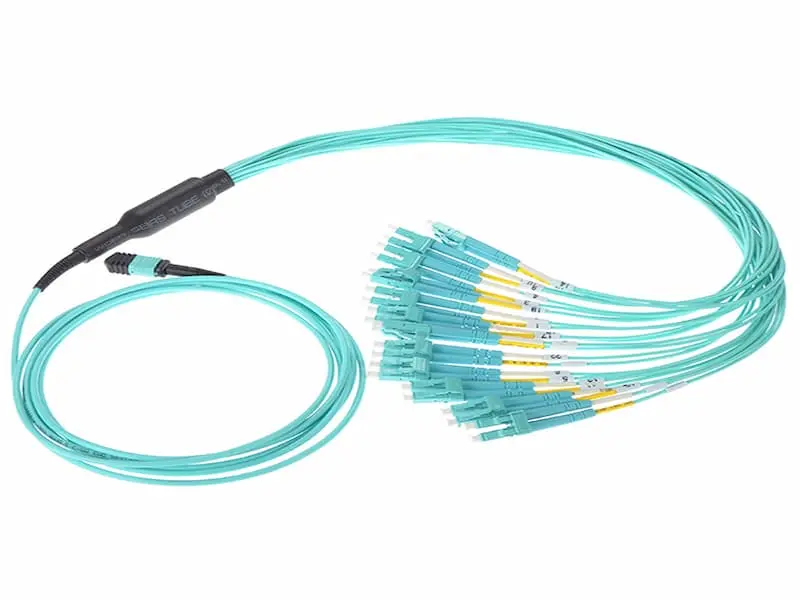

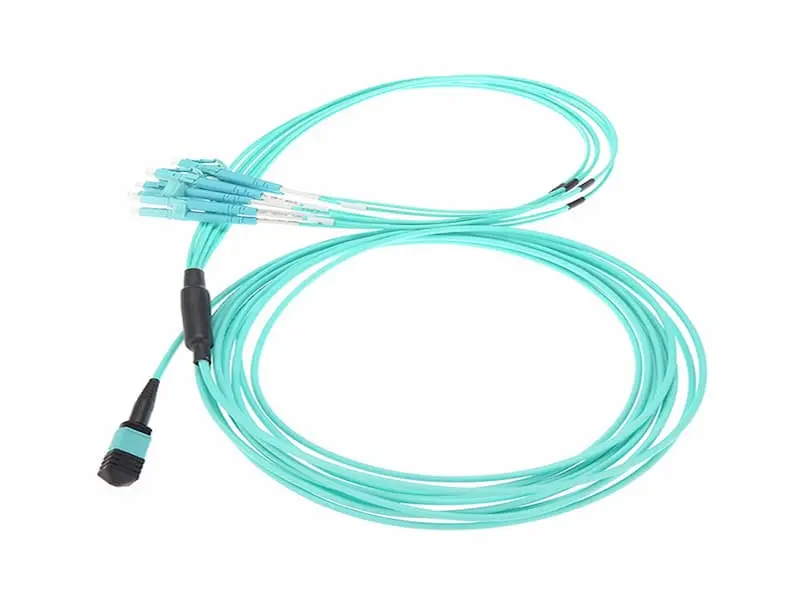

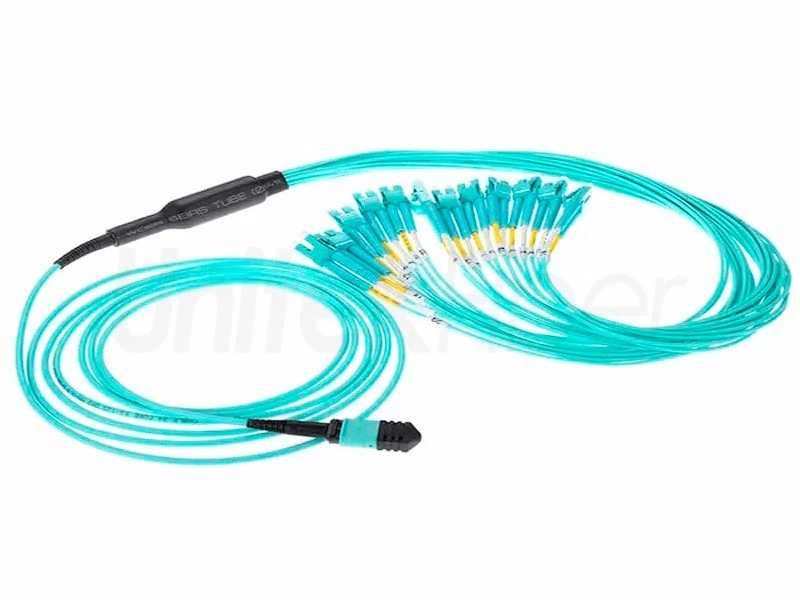

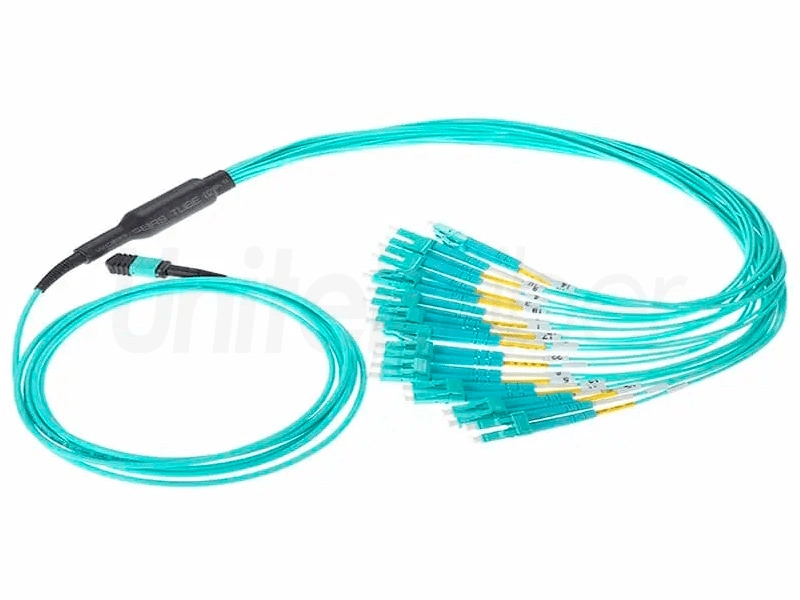

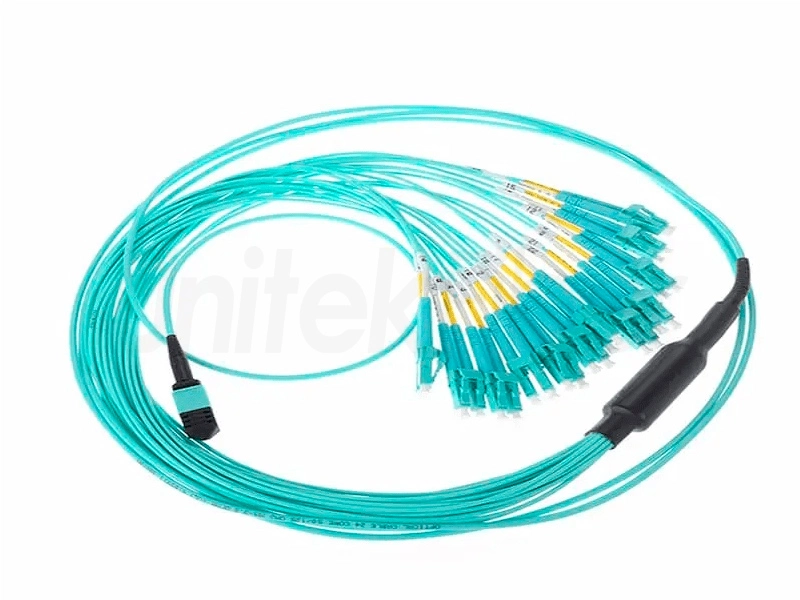

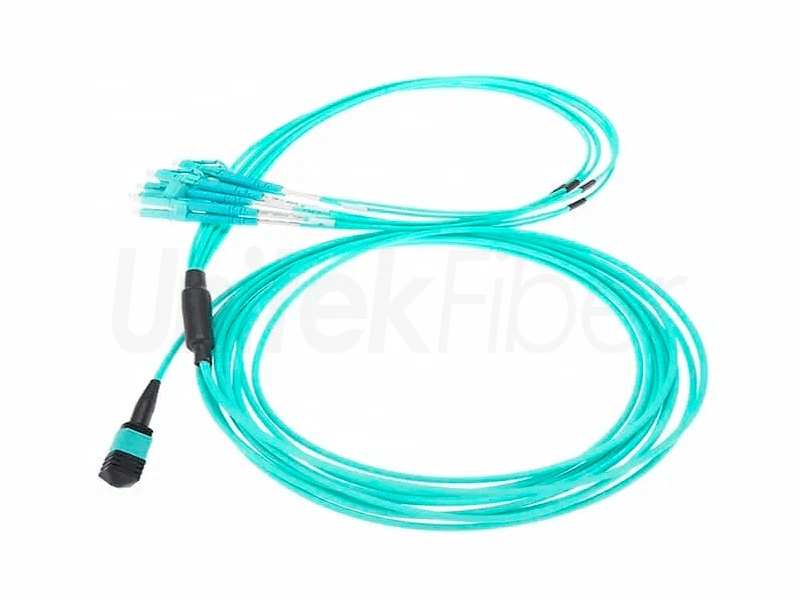

MTP|MPO breakout cables are the ideal connection to fiber optic patch panels and data distribution routing. They can be made with both 12 core MPO|MTP connectors or 24 core MPO|MTP connectors. A variety of options are available and include MPO|MTP to LC, SC, ST, and FC fiber optic patch cables.

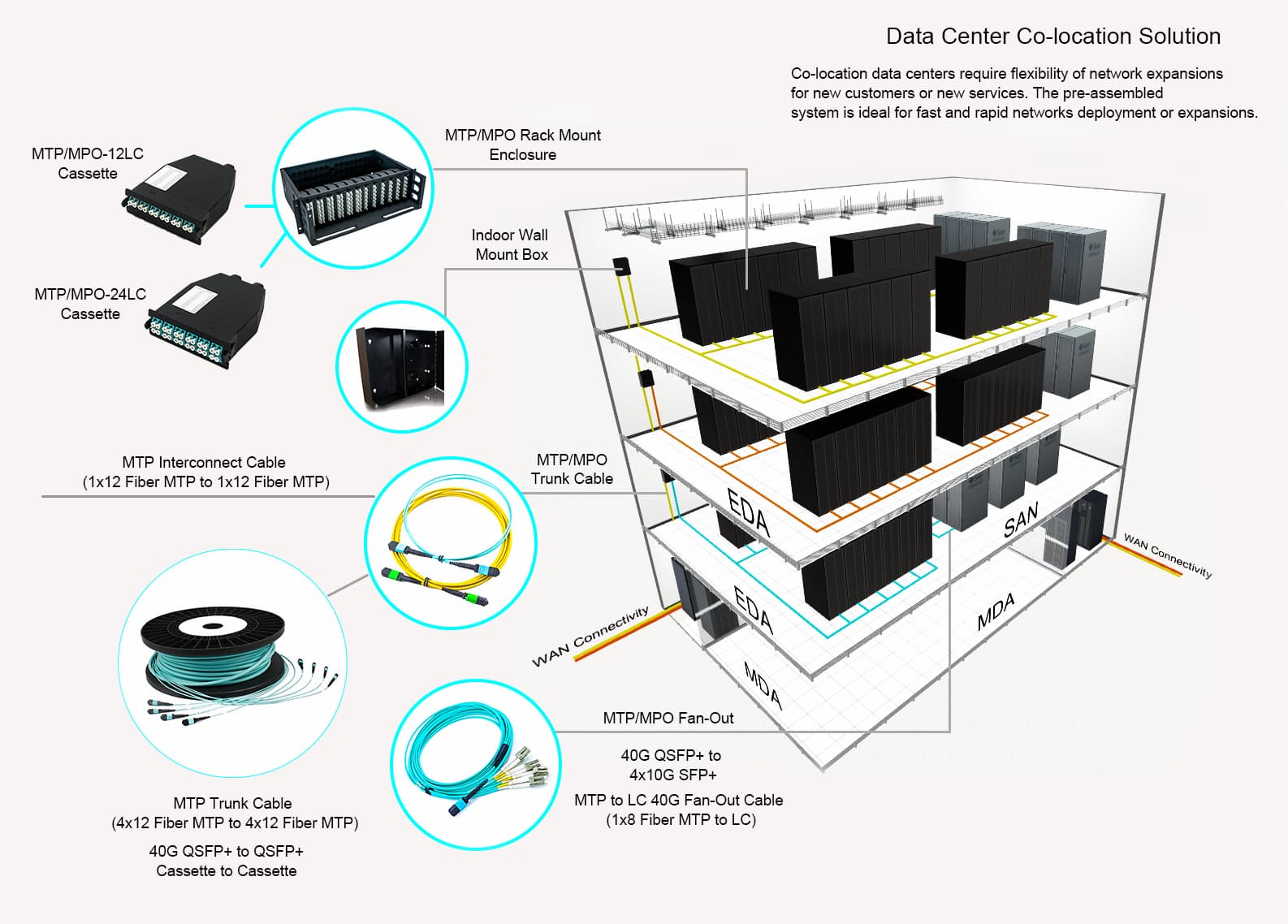

MPO|MTP-LC breakout cable can be used in many existing data centers, such as switches, rack mount fiber patch panel, etc. and the main distribution board, without the need for additional network equipment.

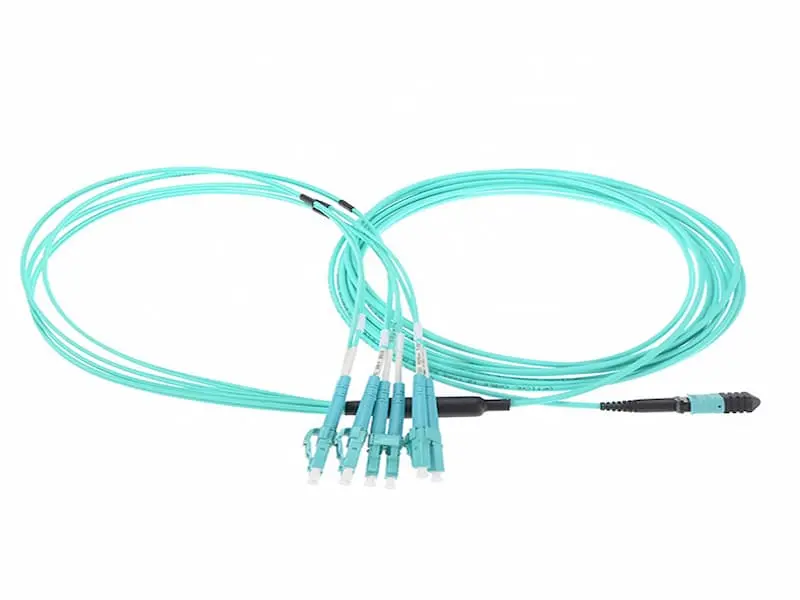

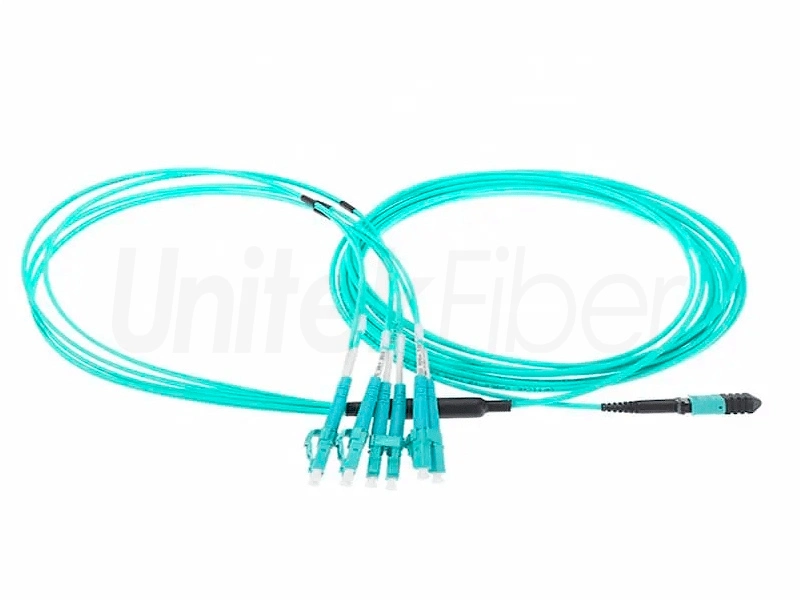

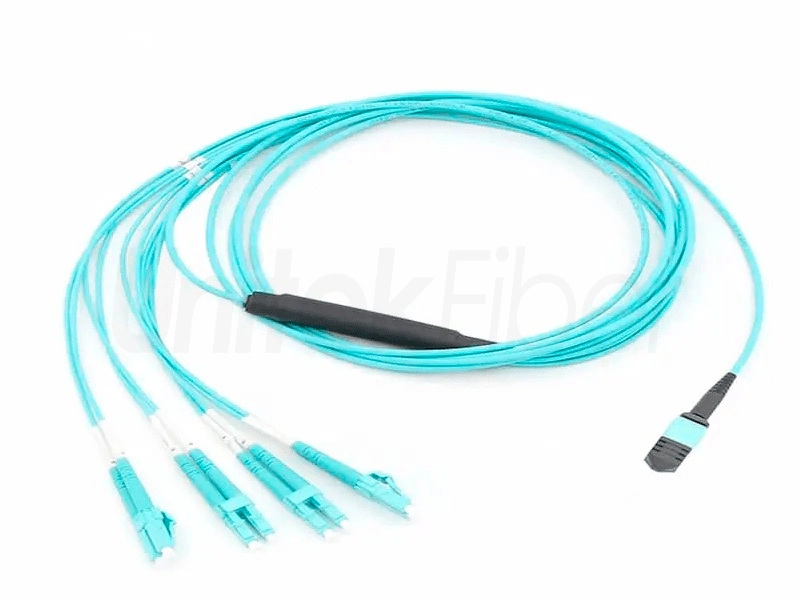

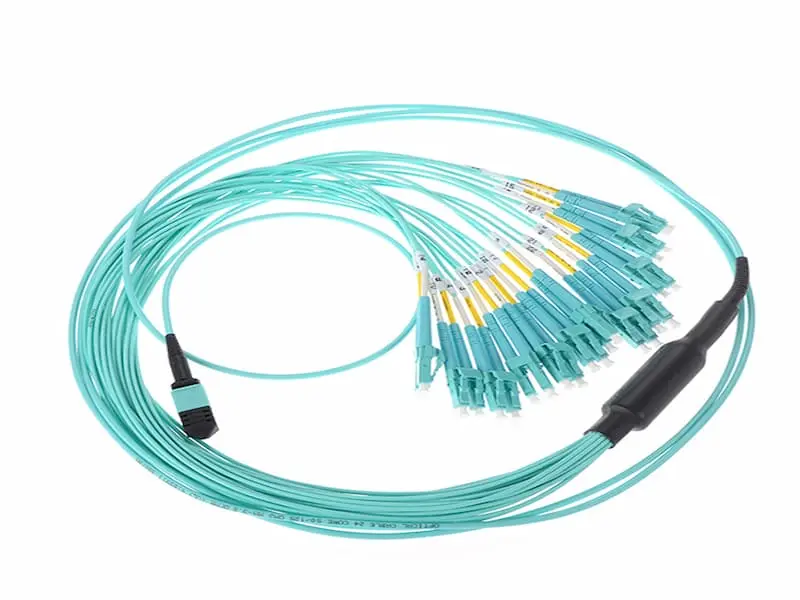

The MPO|MTP-LC breakout cable is pre-terminated with a unique fiber channel to meet 40G|100G Ethernet and support high-bandwidth applications. It is a high-density solution that occupies the smallest physical space. MPO|MTP breakout cable are usually composed of MPO|MTP connector and multiple LC|SC (simplex|duplex) connector, it is mainly used to connect the network equipment on the rack mount patch panel to the MPO|MTP trunk cable wiring. The optical cable of MPO|MTP breakout cable are also available in OM3, OM4, OM5 and single-mode optical fibers.

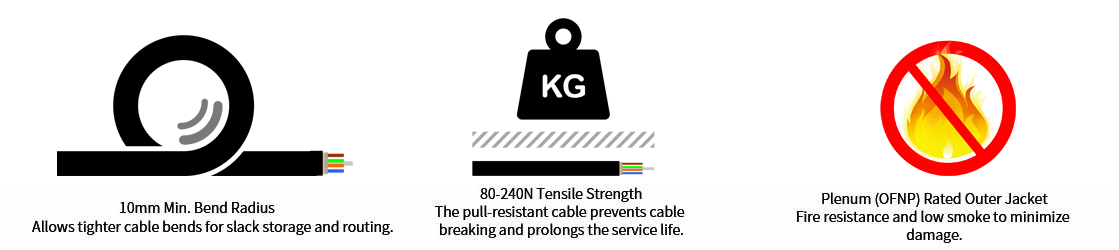

High grade optical fiber has excellent bending resistance and compression resistance, making them ideal choice for high-density cabling.
OFNR Riser Rated fiber cable and OFNP Plenum fiber cable can be choose for your network cabling.
MPO|MTP breakout cable are mainly used in scenarios where low bandwidth is upgraded to high bandwidth. With the expansion of the data center, the basic bandwidth is upgraded from 10G to 40G, from 25G to 100G, or even from 50G to 200G|400G. All of these cases require the use of MPO|MTP fiber cables to connect 1pcs high-speed fiber optical transceiver to 4pcs or 8pcs low-speed optical modules.
Model | SM | MM | |
Connector A： | MTP/MPO/APC | MTP/MPO/PC | |
Radius Long： | ≥2000mm or ≤-10000mm | ≥2000mm or ≤-10000mm | |
Radius Short： | ≥50mm | ≥50mm | |
Angle Long： | 0°±0.2° | 0°±0.2° | |
Angle Short： | 8°±0.2° | 0°±0.2° | |
Fiber Height： | 1100nm~2500nm | 1100nm~2500nm | |
Differential Height： | ≤500nm | ≤500nm | |
Different Adjacent Fiber Height： | ≤300nm | ≤300nm | |
IL： | Standard Loss:0.7dB | Standard Loss:0.7dB | |
Low Loss: ≤0.35dB | Low Loss: ≤0.35dB | ||
RL： | ≥60dB | ≥30dB | |
IR Test wavelength： | 1310nm&1550nm | 850nm&1300nm | |
Connector B： | SC/LC/ST/FC/UPC | SC/LC/ST/FC/APC | SC/LC/ST/FC/PC |
Radius of curvature（mm）： | 7 ~ 25 | 7 ~ 25 | 7 ~ 25 |
Fiber Height： | -50 ~ +50 | -50 ~ +50 | -50 ~ +50 |
Axis offset(um)： | 0 ~ 50 | 0 ~ 50 | 0 ~ 50 |
IL： | Standard Loss:0.3dB | Standard Loss:0.3dB | Standard Loss:0.3dB |
RL： | ≥50dB | ≥60dB | ≥35dB |
IR Test wavelength： | 1310nm&1550nm | 1310nm&1550nm | 850nm&1300nm |
Yes, the price is not a problem, everything could be negotiated based on the quantity.We will give you the competitive price.
Yes. We supply OEM service. You can send us your drawing.
Our factory has dug in this industry for many years and sold to many countries in the world.

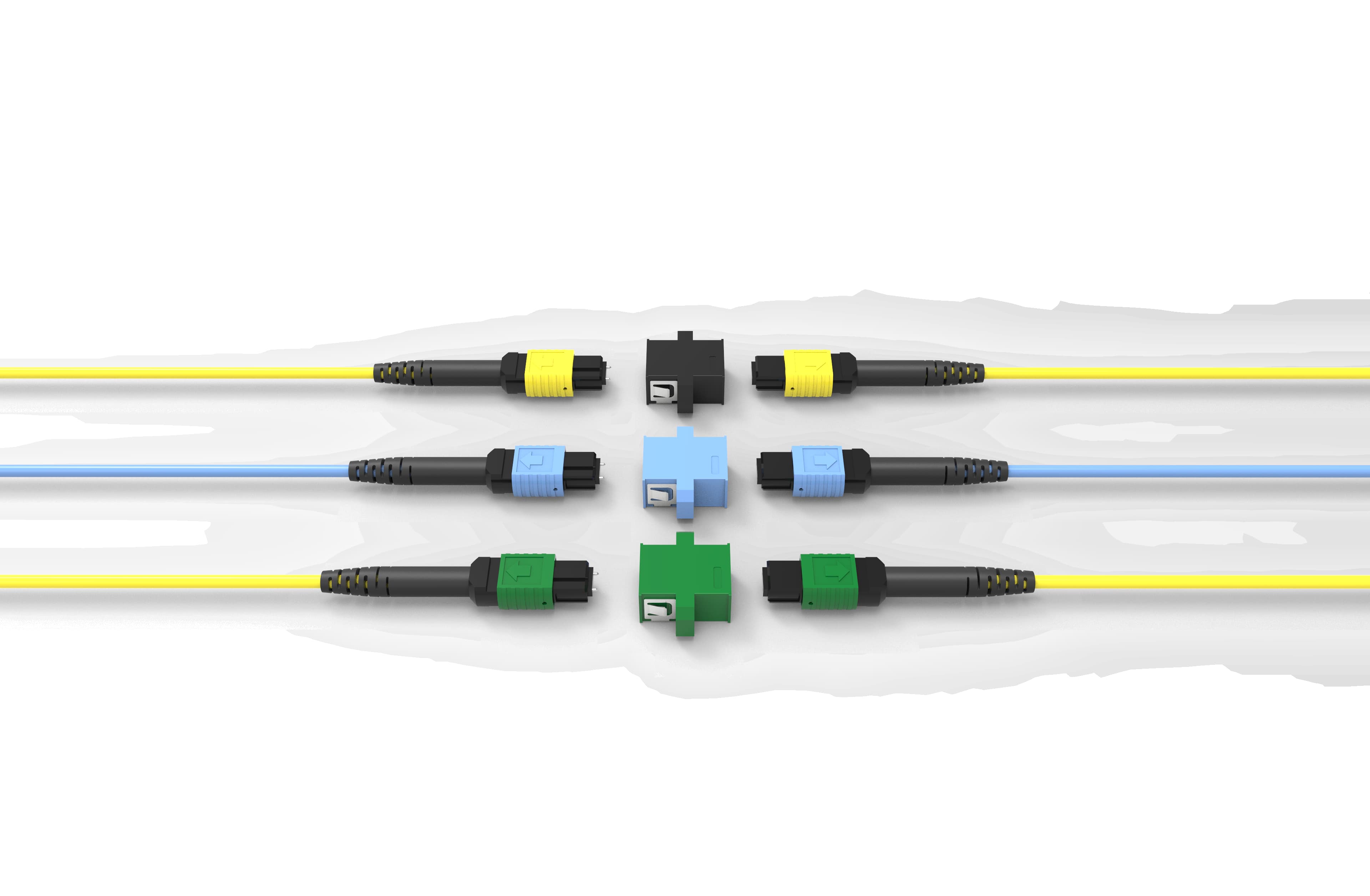

MPO|MTP connectors can either be male or female.
We can produce MPO|MTP cables which the polarity and pins of cable can be changed.
