PLC splitter have different physical types to suit various installation requirements and network designs. The steel tube PLC splitter is housed inside a steel tube, making it rugged and durable for outdoor or harsh environment applications. The LGX PLC splitter has a standardized form factor and can be installed in rack mount enclosures, providing high-density solutions for multiple PLC splitter. The cassette PLC splitter is enclosed in an ABS plastic box, making it lightweight and easy to install, commonly used in indoor or office environments. The bare ribbon fiber PLC splitter integrates multiple optical fibers into a single flat ribbon structure. This design allows for efficient and compact splitting of signals in fiber optic networks. The choice of physical type depends on factors such as installation location, available space, and required durability.

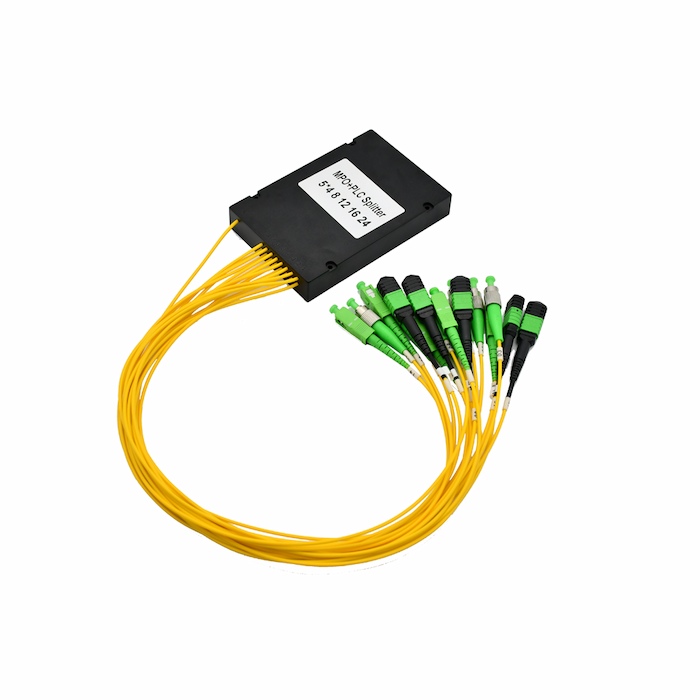

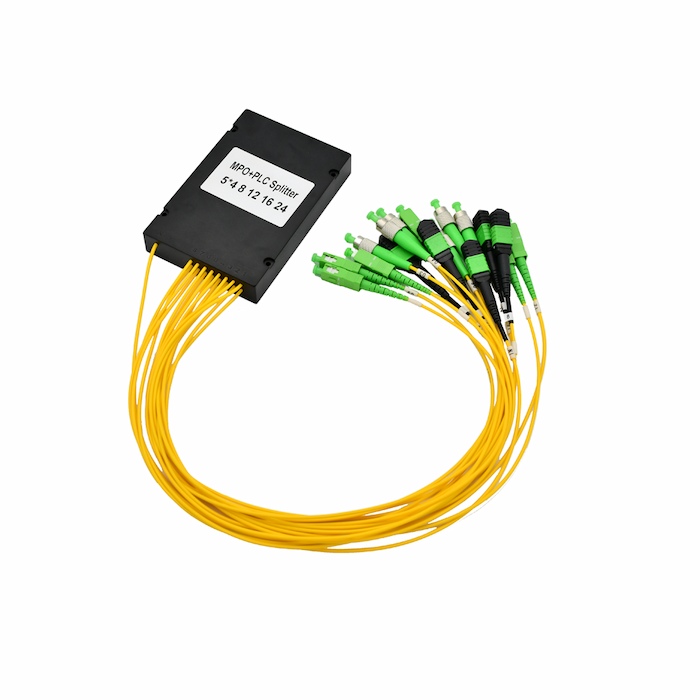

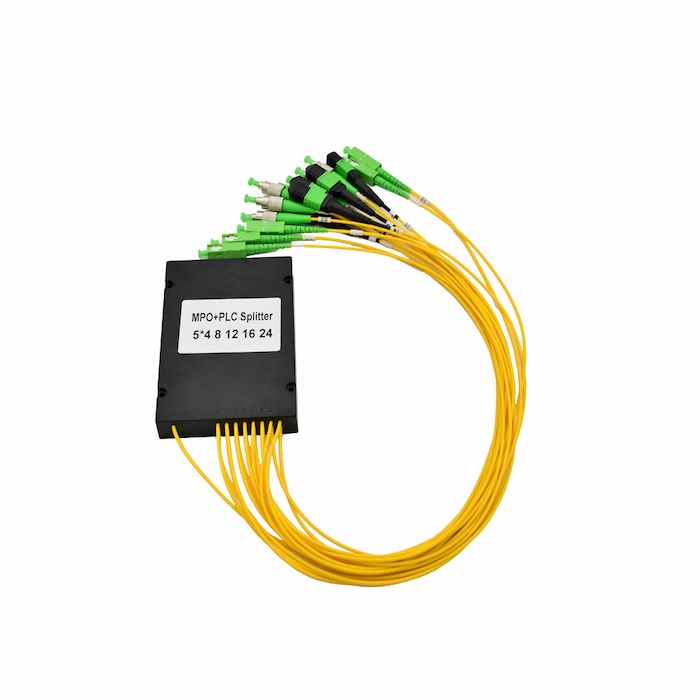

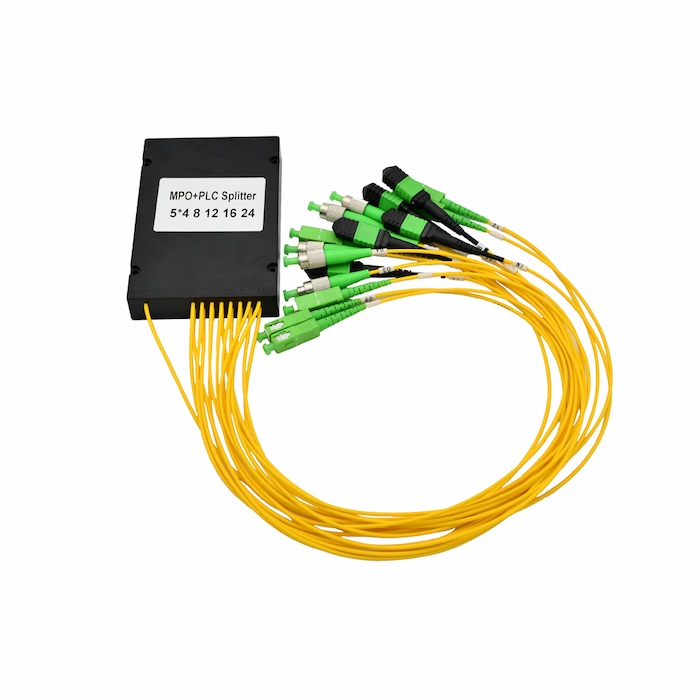

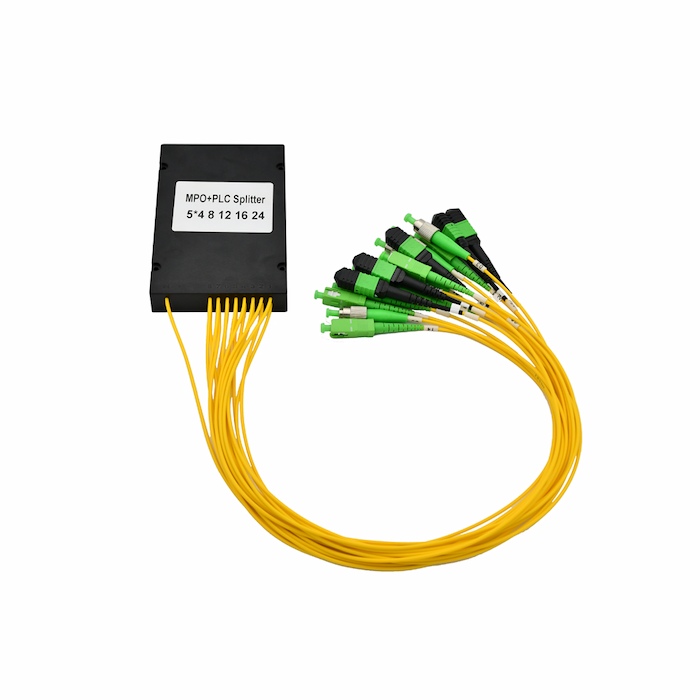

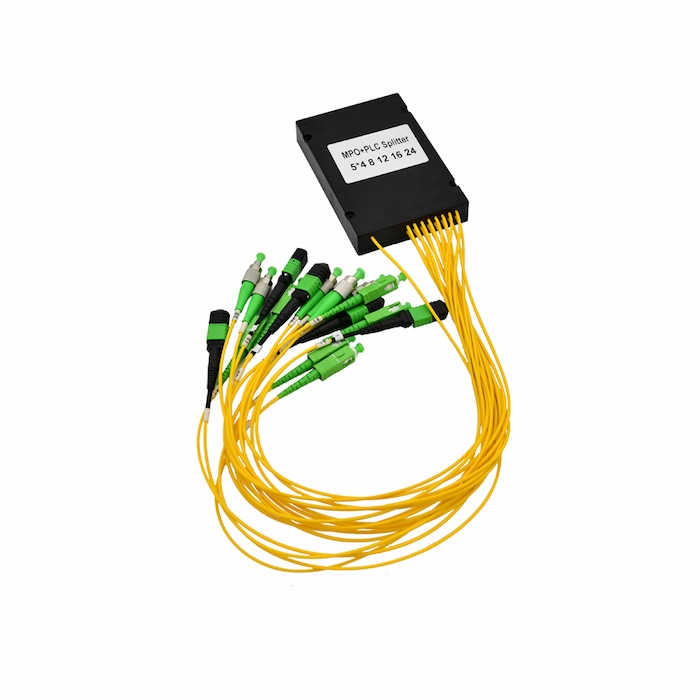

The ABS cassette fiber optic PLC splitter is named so because it comes pre-loaded in a compact cassette module, which simplifies installation and improves overall optical cable management. It typically features one input port and multiple output ports, allowing it to split a single optical fiber signal into several channels. The cassette design of the optical PLC splitter offers space efficiency, making it ideal for installations with limited cabinet space. It neatly fits into the cassette slot, reducing clutter and enabling easy maintenance and future expansion.
The MPO/MTP connector used in conjunction with a optical PLC splitter offers several advantages for fiber optic networks. One of the primary benefits is its high optical fiber density, which facilitates efficient use of space. Additionally, the push-pull mechanism of the MPO/MTP connector allows for quick and easy installation. The precise alignment of its ferrule design minimizes loss and improves signal quality. Furthermore, the multi-fiber design simplifies testing and troubleshooting, and its compatibility with a variety of systems and equipment makes it versatile. Lastly, the use of MPO connectors with optical PLC splitter can result in cost savings due to their high optical fiber density and ease of installation/maintenance.
Fiber optic PLC splitter are essential components in data center networks. They enable the efficient distribution of optical signals among different network devices, including switches, optical transceiver module, and fiber optic patch panel, facilitating high-speed networking and reliable data transmission. In addition, they play a crucial role in redundant network setups, distributing optical signals across redundant paths or devices to ensure uninterrupted operation in the event of equipment failure. Overall, fiber optic PLC splitter provide critical support for the complex infrastructures found in data centers, enabling efficient communication, data transfer, and network resilience.
MPO/MTP cable are designed to provide optimal connectivity with fiber optic PLC splitter, offering exceptional tensile strength, fire retardant properties, and favorable bend radius. Their durability, safety, and ease of installation make them ideal for use in various network environments. These MPO/MTP cable are constructed with high quality materials and undergo rigorous testing to meet industry standards, ensuring reliable and long-lasting connections. The MPO/MTP cable guarantee superior performance when paired with optical PLC splitter, contributing to the overall efficiency and longevity of network infrastructures.
Common splitting ratios for PLC splitters include 1:2, 1:4, 1:8, 1:16, and 1:32, although other ratios may be available depending on the specific application requirements.
A PLC (Planar Lightwave Circuit) splitter is a passive optical device that can split an incoming optical signal into multiple output signals.
The most common types include bare ribbon splitter, steel tube splitter, cassette PLC splitter and LGX splitter.
The PLC splitter use waveguide technology to split the signal, while FBT splitter use fused optical fiber to split the signal.
Most PLC splitters are designed to operate in the 1260-1650nm wavelength range, which covers the standard optical communication bands.
