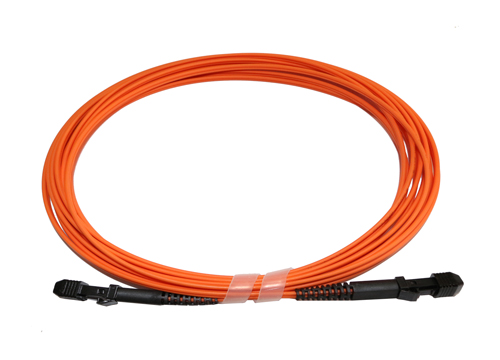

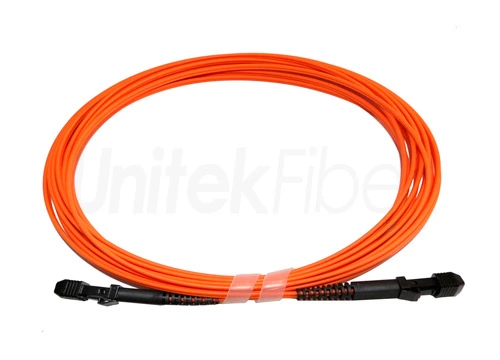

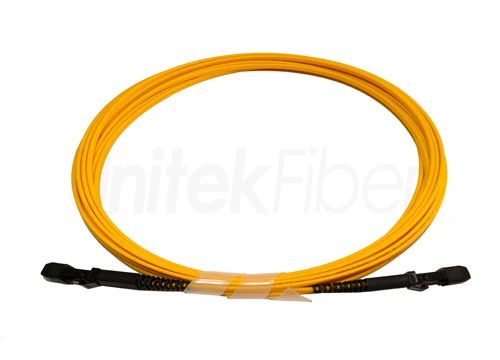

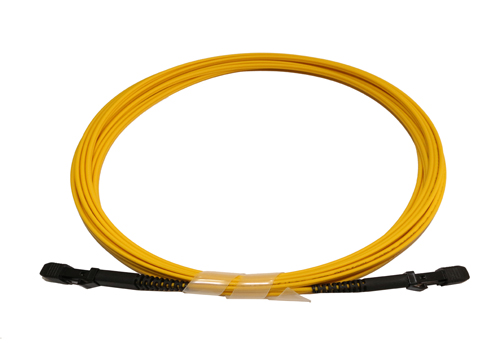

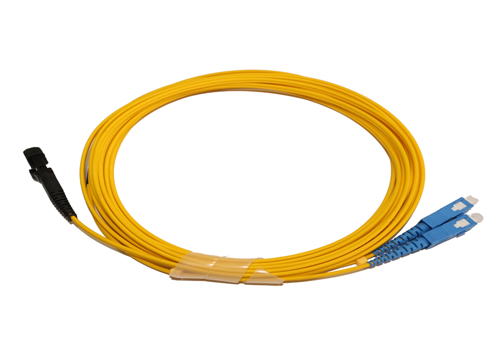

This MTRJ fiber patchlead is a fiber optic cable used to attach one device to another for signal routing. Since the outer diameter of this MTRJ fiber patch cord is 2.0mm, it can save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed. The singlemode fiber jumper is usually using in the long distance data transimission, at 1310nm up to 10km, at 1550nm up to 40km. All UnitekFiber patch cords have an identification label and have a unique serial number assigned to them. On each of these labels the part number, serial number, and the length of the patch cord are displayed for easy product recognition and traceability.

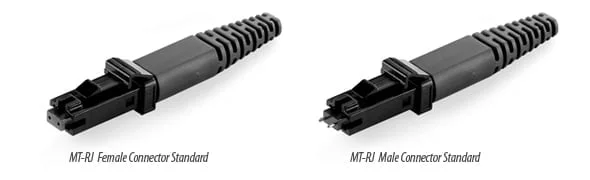

As a square fiber optic connector that integrates transceiver and transmitter, the MTRJ connector has a precision plastic outer part, including a push-pull plug-in clamping mechanism. Therefore, the MTRJ optical patch cord is suitable for indoor applications in telecommunications and data network systems. Due to the difference in pins, it is divided into male and female connectors. MTRJ connector has the same latch structure as the RJ45 LAN electrical connector. The optical fiber is aligned by the guide pins installed on both sides of the small sleeve. In order to connect to the optical transceiver, the optical fiber on the connector end face is designed with a double-core arrangement. Its internal design can save installation space. It is a high-density fiber optic connector for data transmission.

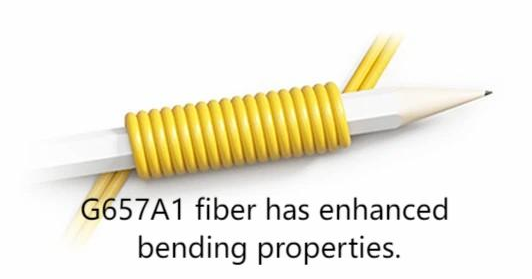

The utilization of fiber optic patch cord incorporating Corning G657A1 optical fiber grade brings the advantage of a superior bend radius. This bend-insensitive optical fiber type allows for tighter bends without compromising the signal quality or transmission performance. The G657A1 optical fiber is specifically engineered to minimize signal loss and maintain excellent optical performance even when subjected to challenging bending conditions. This makes the fiber jumper as an ideal choice for applications where space constraints or tight fiber patch cable management require the fiber optic patch cord to navigate through narrow corners or congested areas without sacrificing signal integrity.
Our test program including: end face test, 3D interferometer test, singlemode IL&RL test, multimode IL&RL test. Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean, <0.25db max for >97% of samples, Return Loss >55dB. Geometrical Characteristics comply with IEC 61755-3-1. And all materials of fiber patch cord comply with IEC and ROHS.
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
