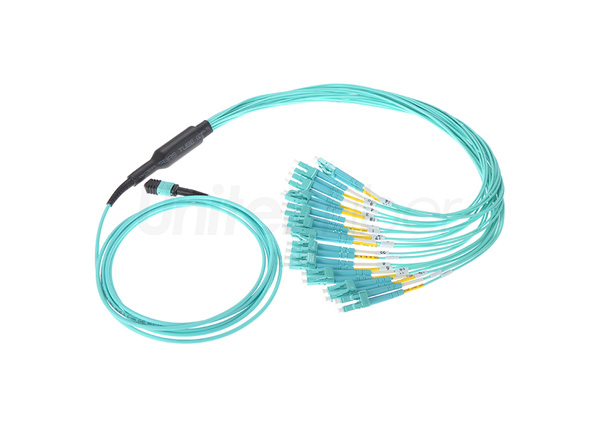

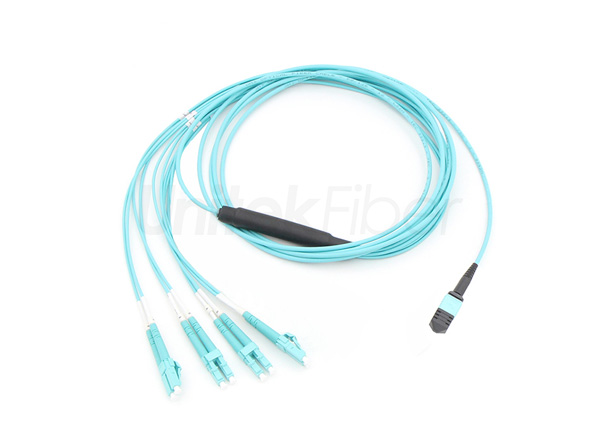

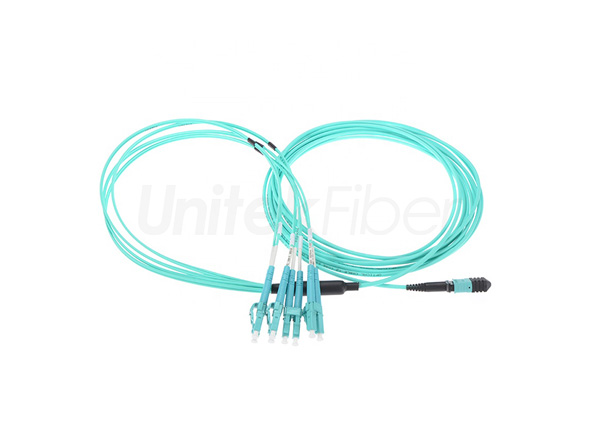

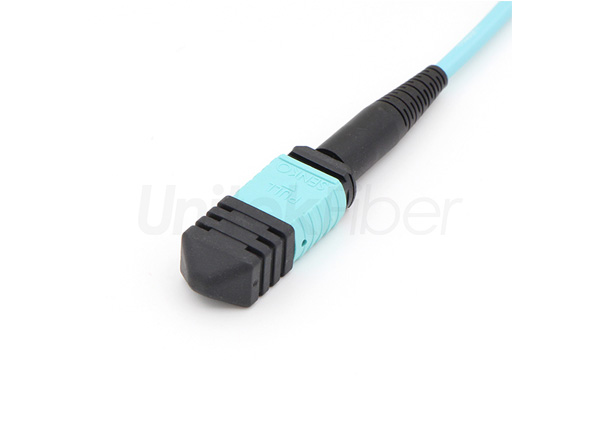

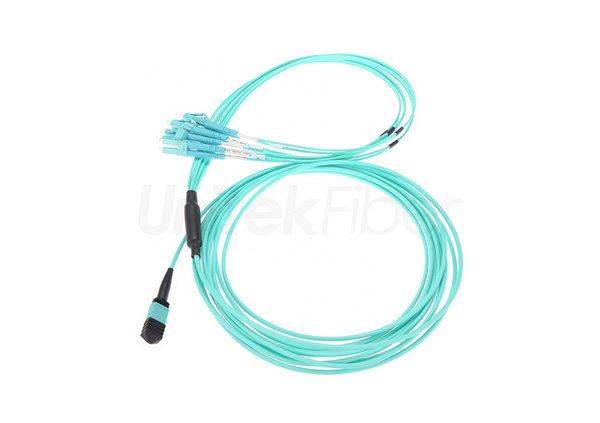

MPO/MTP to LC fiber Optic patch cord 24 cores is that one end of the breakout cable is 24 cores MPO/MTP connector, and the other end is 2*12 duplex LC connectors. MPO/MTP fiber optic patch cord is in a high density and precise geometric design to support fiber connections from 8 to 144 cores. The compact design of the MPO/MTP connector makes the MPO/MTP cable have a large number of cores and a small size. It is smaller than SC connectors.

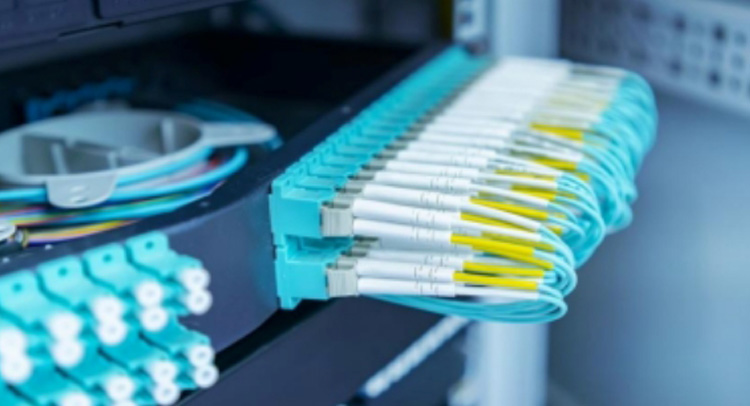

As a high density fiber patch cord, this MPO/MTP fiber patch cord plays an important role in high-speed data transmission between buildings in a local area network (LAN) setup. It also can be used for wiring connections within distribution boxes, which are used to distribute and manage fiber optic cables. This MPO/MTP-24LC fiber patch cord is widely used in fiber optic communication systems for their high-speed transmission capabilities and ease of installation.

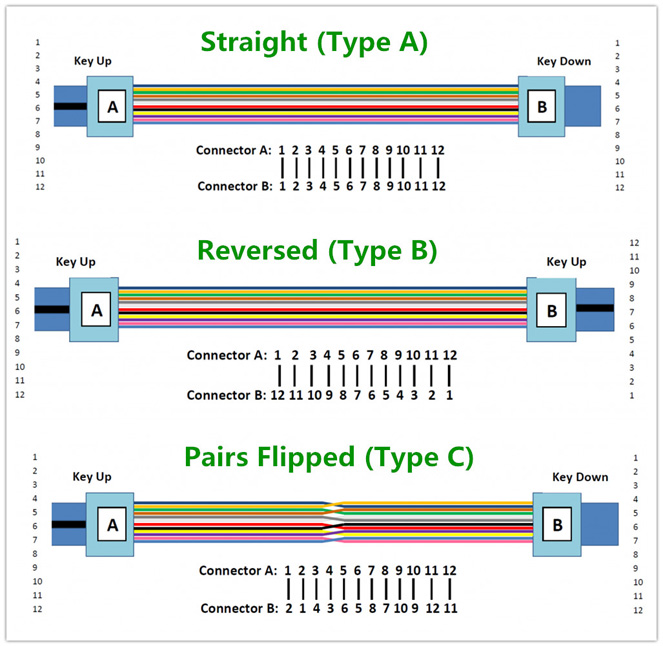

There are three polaries of MPO/MTP fiber optic Patch Cord - Type A, Type B and Type C.
Type A: Type A MPO/MTP fiber patch cord is a straight-through fiber patch cord with an MPO/MTP connector keyed up on one end and an MPO/MTP connector keyed down on the other end. This allows the fibers at both ends of the cable to remain in the same position.
Type B: Type B MPO/MTP fiber patch cord is a cross over fiber optic cable which use key-up connectors on both ends of the fiber optic cable. This type of array pairing results in fiber inversion, which means that the fiber positions are reversed at each end.
Type C (cross pair): Type C MPO/MTP fiber patch cord is a pair of adjacent fiber cores crossing positions. For example, the optical fiber at position 1 at one end is moved to position 2 at the other end of the cable. The fiber at position 2 at one end is moved to position 1 at the other end, and so on.

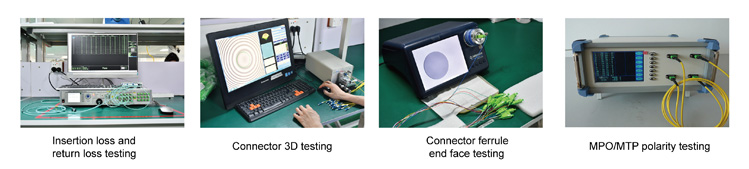

UnitekFiber provides high-quality 100% testing of MPO/MTP fiber optic jumpers, which meet product standards and satisfy customer needs. In order to ensure the high quality of the product, we will perform insertion loss and return loss testing, MPO/MTP polarity testing, connector 3D testing, and connector ferrule end face testing. The MPO/MTP fiber optic patch cord we provide can meet GR 326 or IEC61300-2; comply with ROHS, IEC61754-7, IEC 61753-1, IEC61300-3-4 and other standards.
MTP connector is fully compliant with-FOCIS (aka TIA-604-5)-IEC-61754-7-CENELEC EN50377-15-1. The MTP brand connector components are fully compliant with IEC Standard 61754-7 and TIA 604-5-Type MPO.
Yes, we can supply OEM/ODM service, please contact us to get more details
Yes, the polarity and pins of the MPO/MTP pro can be change.
LSZH (low smoke and halogen free) material has some obvious advantages that are low smoke, low toxicity, low corrosion, and high flame retardancy. OFNP is the highest-grade fiber optic cable.
