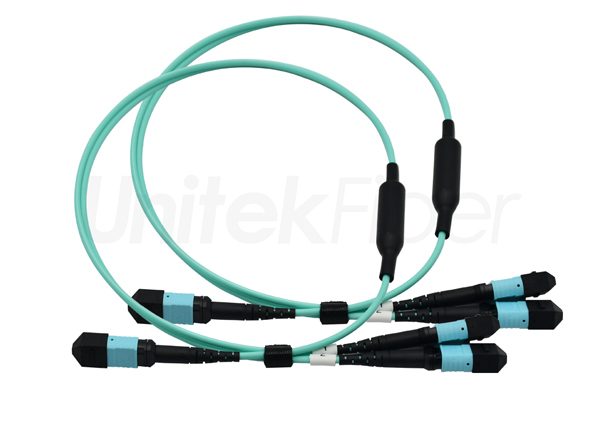

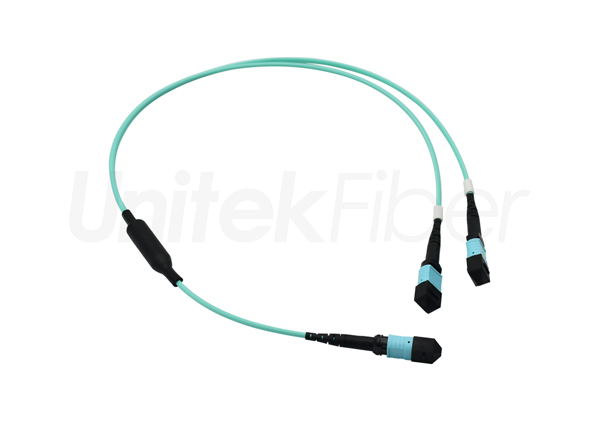

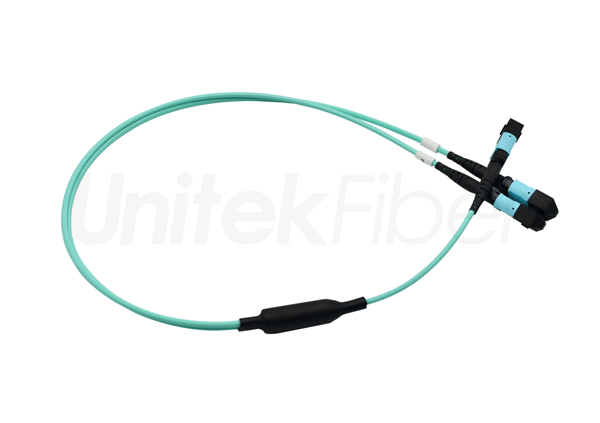

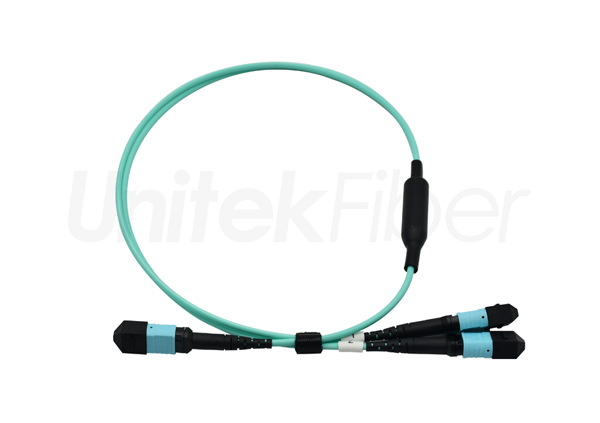

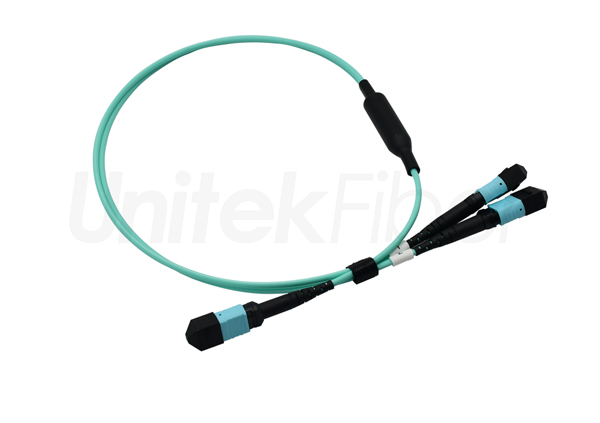

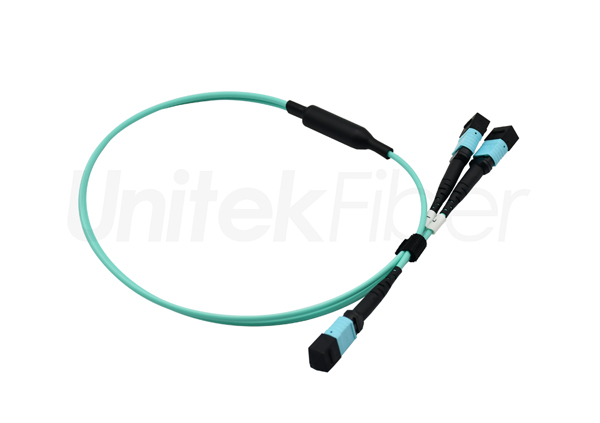

24 cores MPO/MTP fiber connectors are connected to 2*12C MTP/MPO connectors, the MTP/MPO fiber patch cords are designed to provide a more flexible multi-fiber cabling system based on MTP/MPO products. This conversion is to accommodate the need for fiber optic cable connections between different devices. Containing a flexible outer sheath, like PVC and LSZH. The MPO/MTP fiber cable are slim and easy to route within a rack. MPO/MTP fiber patch cords are used to connect directly to transmission equipment, and generally used to support parallel optical communications, and high density date center.

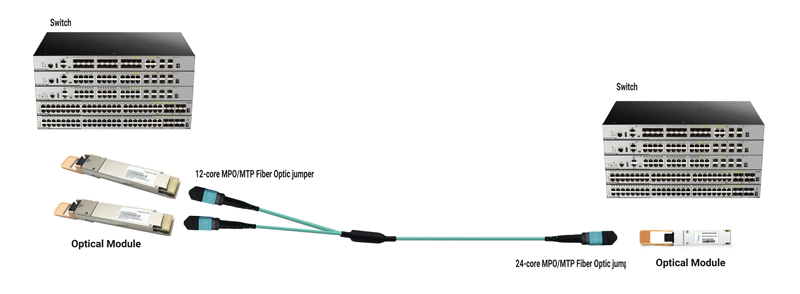

In a high density data center, there are so many optic distribution frame. The 24 cores - 2*12 cores multi-mode OM3 fiber patch cord plays an crucial role when using high density fiber optic patch panel, because it is establishing reliable and high-performance connections between network components.The MPO/MTP fiber optical cable make the large number of fibers transfer the data simultaneously, keeping the greatest network capacity. 24 cores MPO/MTP connector on one end, and 2*12 cores MPO/MTP connector on the other end, the MPO/MTP fiber cable are simplifies cable management by minimizing the number of individual fiber optic patch cords required. The MPO/MTP fiber optic patch cords could be reduce the risk of optical patch cable congestion and makes it easier to trace and troubleshoot connections when necessary.

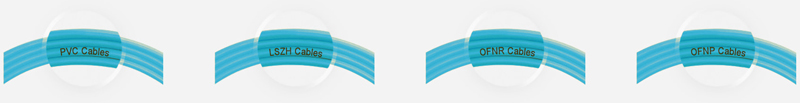

When looking at the construction of any fiber optic patch cable, the jacket is the first line of defense against physical damage from chemicals, water, burning and other potentially damaging effects that would compromise the viability of the cable. The outer jacket serves as a protective layer for the cable, providing fire resistance and moisture resistance. UnitekFiber provides PE, LSZH, PVC, PVC-OFNR, PVC-OFNP type of cable jacket, ensuring that whether the MPO/MTP fiber jumper using in indoors or outdoors, it could be meet the usage requirements to extend the service life of the fiber optic jumper and prevent the data transmission function from declining.

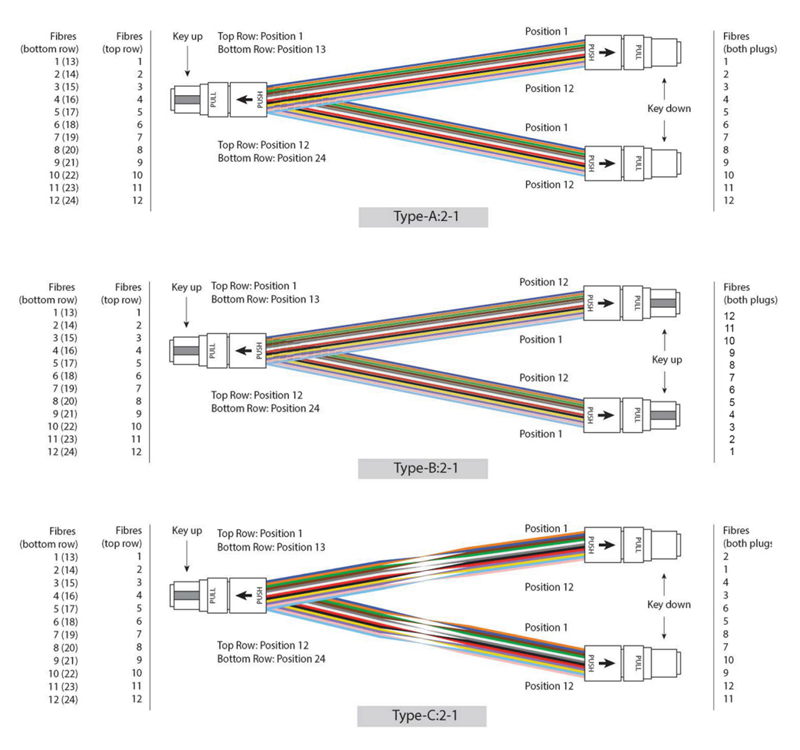

Correct polarity is crucial for ensuring that light signals transmit properly through fiber optic cables. There are three different types of MPO/MTP connector - Type A(straight-through), Type B(Cross) and Type C(Cross Pair).
Yes, this MPO Trunk Cable could be customized Plenum-rated (OFNP), which means it is safe to use in plenum spaces, such as those found in commercial buildings. Meeting the fire safety and environmental requirements for such installations.
Yellow jacket shows that cable has a Single-Mode, and Beige, Aqua, Pink, Green jacket shows that cable has a Multi-mode. Jacket Color Table shows most used equipment cable category and corresponding color.
Type A MPO adapters all have a key up on one side and the mating connector key down on the other side. Type B trunk cable uses key up connector on both ends. This type of array mating results in an inversion, which means the fiber positions are reversed at each end.
MTP is a kind of high performance MPO connector with multiple innovative design.
MTP connectors can either be male or female, often referred to as the gender type of a connector. The male connector has pins, whereas the female connector has no pins. No pins need to be combined with pins to connect. So if you use adapters to connect two cables, they must be one male and one female.
