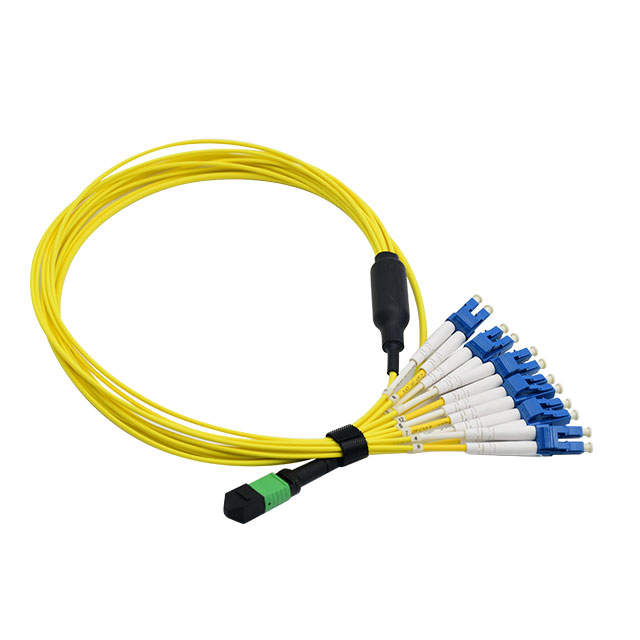

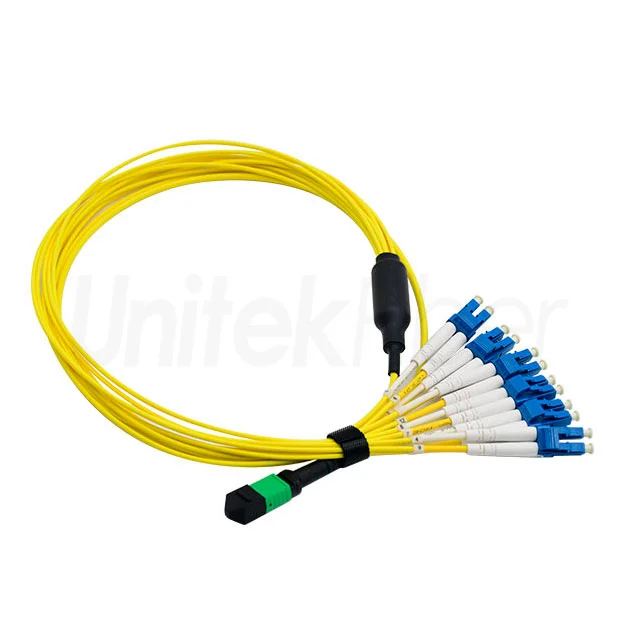

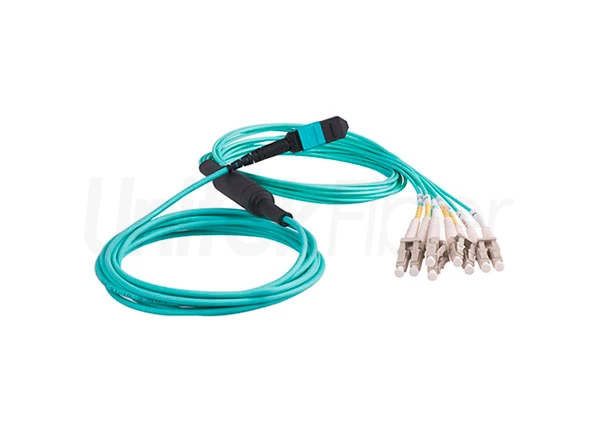

MTP MPO breakout cable is that one end of the breakout cable is equipped with an MTP MPO connector. The other end is with multiple LC, SC, ST connectors in duplex or simplex. The fiber cores can be 4, 6, 8 to 12, and 24 cores. MTP MPO breakout cable are divided into single mode fiber and multimode fiber. The transmission distance can be extended from a few meters to a longer distance. It is an ideal choice for 10G-40G, 25G-100G, 10G-120G network conversion.
There are many types of MTP/MPO connector, and we can distinguish them from the number of cores (number of fiber arrays), male and female, and end face polish type (PC or APC). The male type MPO fiber patch cable has two guide pins on the connector. While the female MPO/MTP patchcord is no pins. The connection between MTP MPO connector is precisely aligned through PIN pins, and the two MPO connectors connected to each other must be one male and one female.
MTP/MPO breakout cable are ribbon MTP|MPO breakout cable and fanout MTP|MPO breakout cable. Generally the beakout part of MTP|MPO breakout patch cord can be 8C to 24C 0.9mm or 2.0mm. The total length of the MTP|MPO breakout cable or branch length and other requirements can be customized according to the cusotmers needs. All kinds of MTP/MPO breakout cables are conformed to Telcordia-GR-326, IEC standards and Rohs requirements.

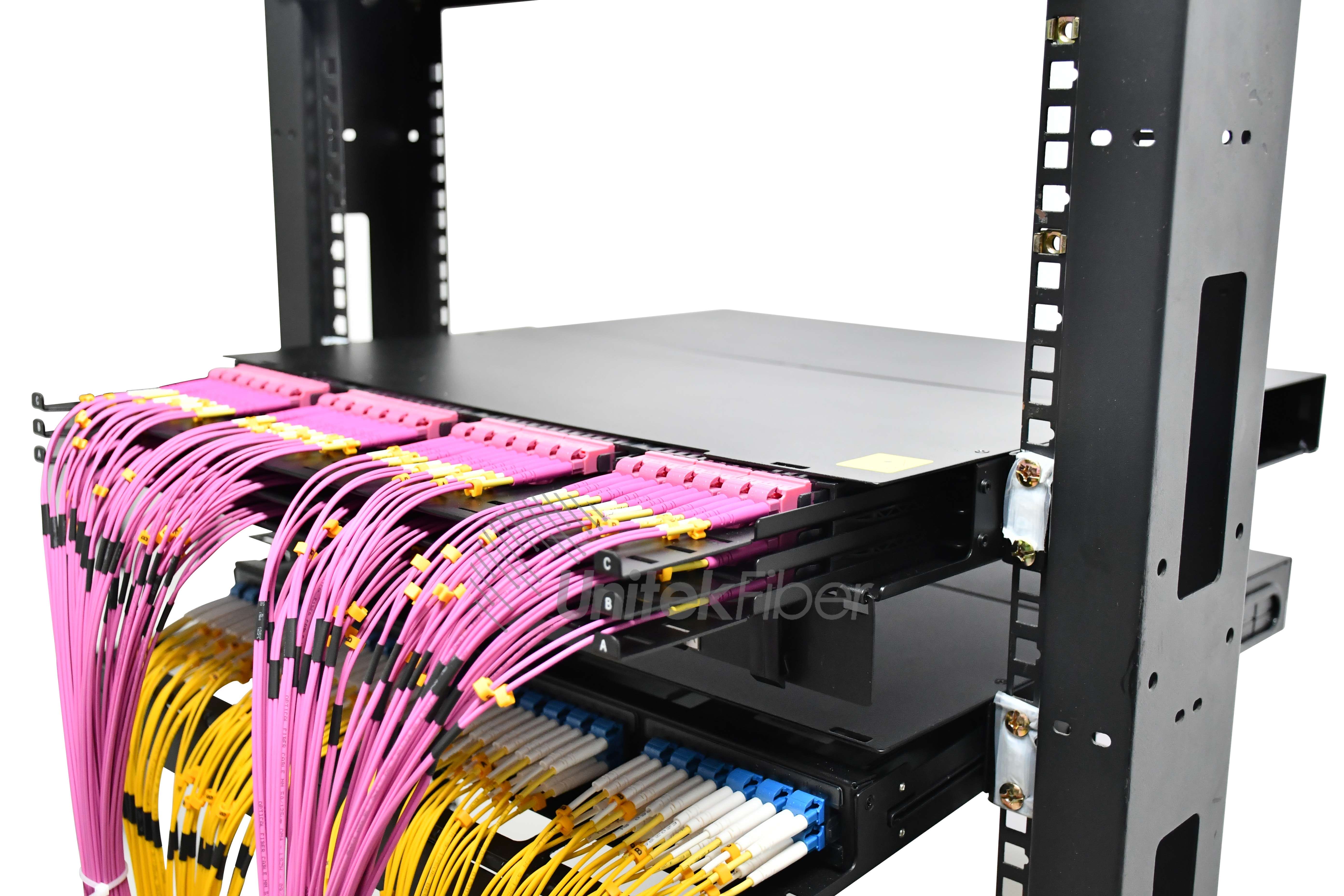

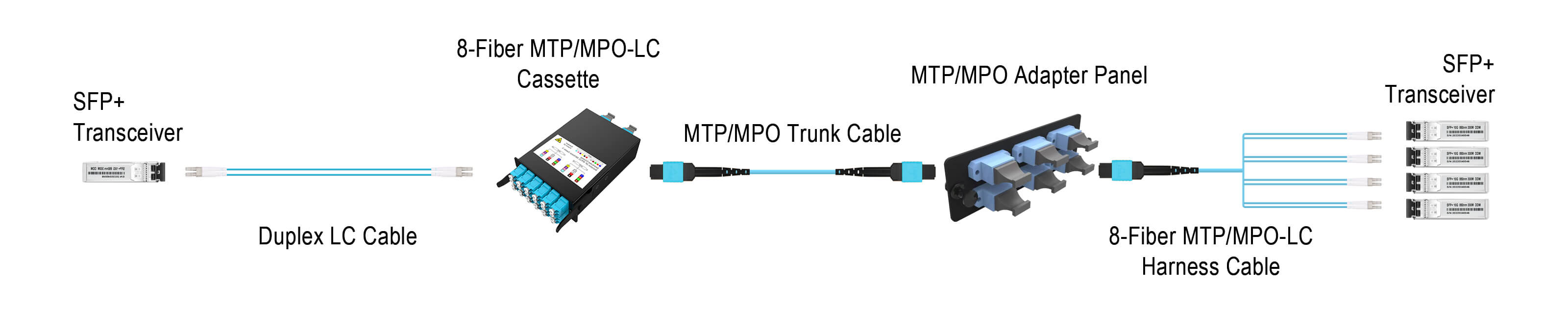

Since the interface of the 10G optical module is LC duplex, a dual-fiber transmission link is generally used in 10G interconnection. When carrying out structured fiber cabling, one end needs to use 8core breakout MTP/MPO-LC fiber cable and 8core MTP/MPO fiber adapter panel, and the other end needs to use LC duplex fiber patch cord. An 8core MTP/MPO fiber patch cord is in the middle to connect the two ends to communicate.

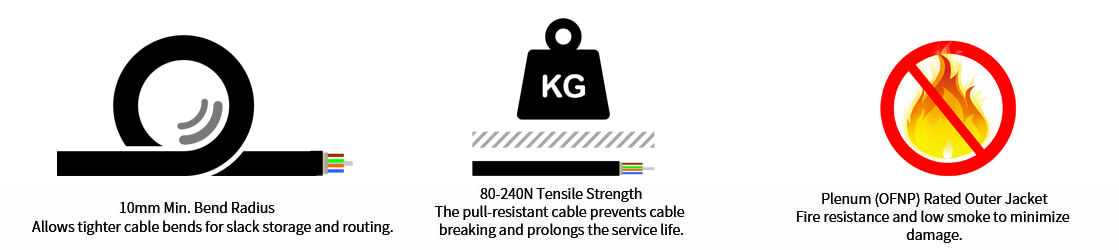

In the field of fiber optic communications, reliable transmission quality is essential. UnitekFiber's MTP|MPO fiber optic patch cord is designed for this purpose. Using G657A1 optical fiber has a minimum bending radius of 10mm, which enables more compact bending when storing and wiring cables loose, effectively saving space and facilitating installation and management in complex wiring environments. The outer sheath of the MPO|MTP fiber patch cord meets the OFNP grade standard and has fireproof and low smoke characteristics. This can not only reduce smoke generation and reduce harm to personnel in emergency situations such as fires, but also minimize damage to cables and related equipment caused by fire, thereby improving the safety and reliability of the entire system.
10mm minimum bending radius allows for tighter cable bends during slack storage and routing. This effectively saves space and facilitates installation and management in complex wiring environments.
The fiber cores can be 8/12/24 cores, allowing the MPO to LC cable to meet different network requirements, from small scale setups to large scale data centers.
The male type MPO fiber patch cable has two guide pins on the connector, while the female MPO/MTP patch cord has no pins.
Yes, it is an ideal choice for 10G to 40G, 25G to 100G or etc. network conversion, making it suitable for a wide range of high speed network applications.
The MTP|MPO fiber cable has a tensile strength of 80N (long term) to 240N (short term). This pull resistant design can prevent cable breaking and prolong the service life of the cable.
The MTP|MPO connectors are well made, and the alignment through the PIN pins is accurate, which has minimized signal loss. Also, the pull resistant design tensile strength has withstood the test of time during installation and regular use.
MPO cable has been a great solution for my network upgrade. 8 core setup offers sufficient capacity for my current and future needs. It's a reliable and high performing product that I would recommend to others.

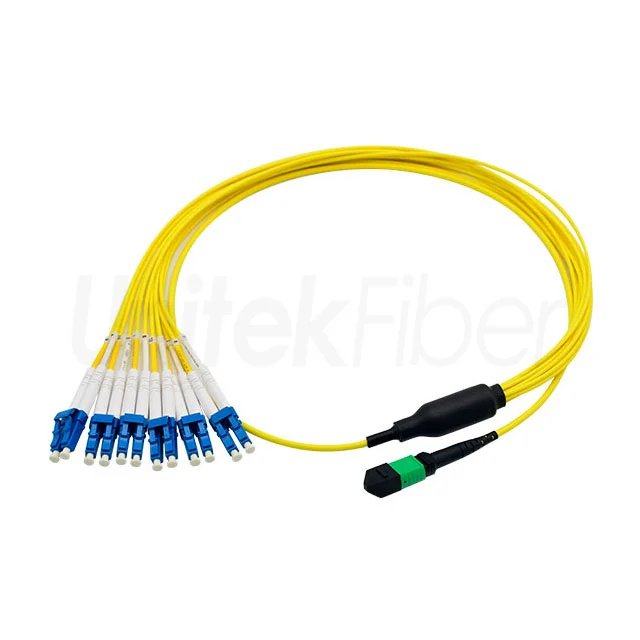

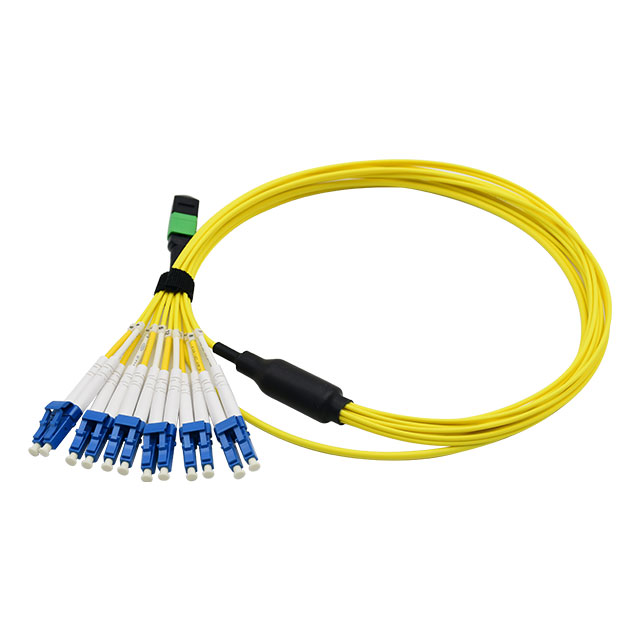

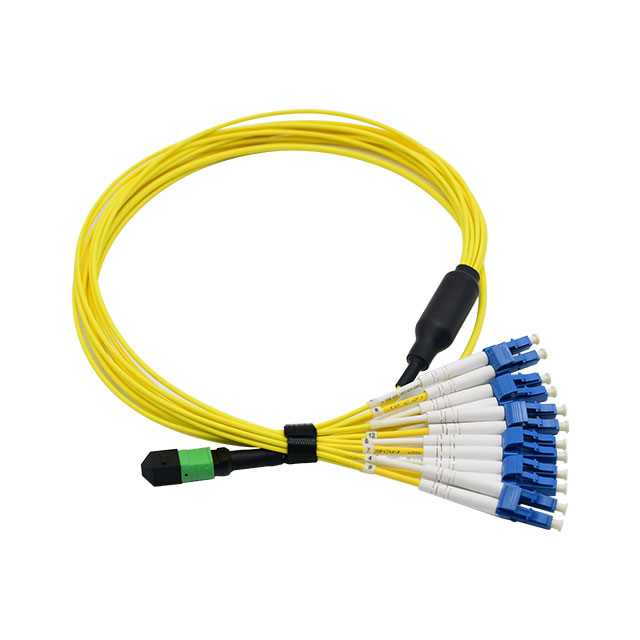

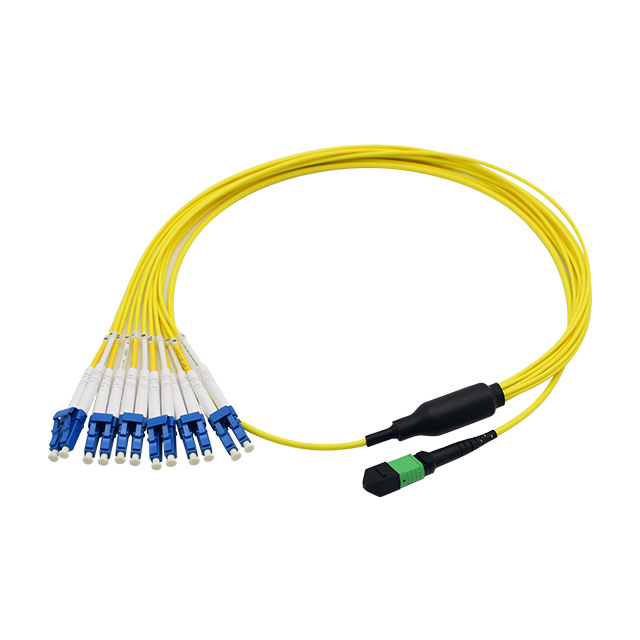

I'm truly impressed with this MTP|MPO-LC Fiber breakout patchcord. 8core SM Corning G657 fiber provides exceptional transmission quality, and it could be customized length. It work great. Highly recommended!
MTP|MPO breakout cable is meets all my expectations. 10mm minimum bending radius allows for easy cable management in tight spaces, and the high quality construction ensures long term reliability. Five star product!
UnitekFiber's MPO-LC breakout fiber cable is a must have for anyone dealing with high speed fiber optic networks. LSZH sheath not only makes it environmentally friendly but also adds to its durability. Great patchcord.
