MPO|MTP cable is available in 8C, 12C and 24C options and uses MM OM3 optical fiber, which achieve stable communication of up to 100Gbps or even higher speeds in a short distance. Suitable for internal wiring in scenarios such as data centers and enterprise networks. It is equipped with MTP|MPO connectors at both ends, which has the characteristics of high density and can achieve the connection of multiple optical fibers in a limited space, greatly improving the wiring efficiency. Male and female connectors to choose from to meet the connection requirements of different devices. LSZH jacket produces less smoke and low toxicity when burning, which is safer to use indoors and effectively protects the safety of personnel and equipment.

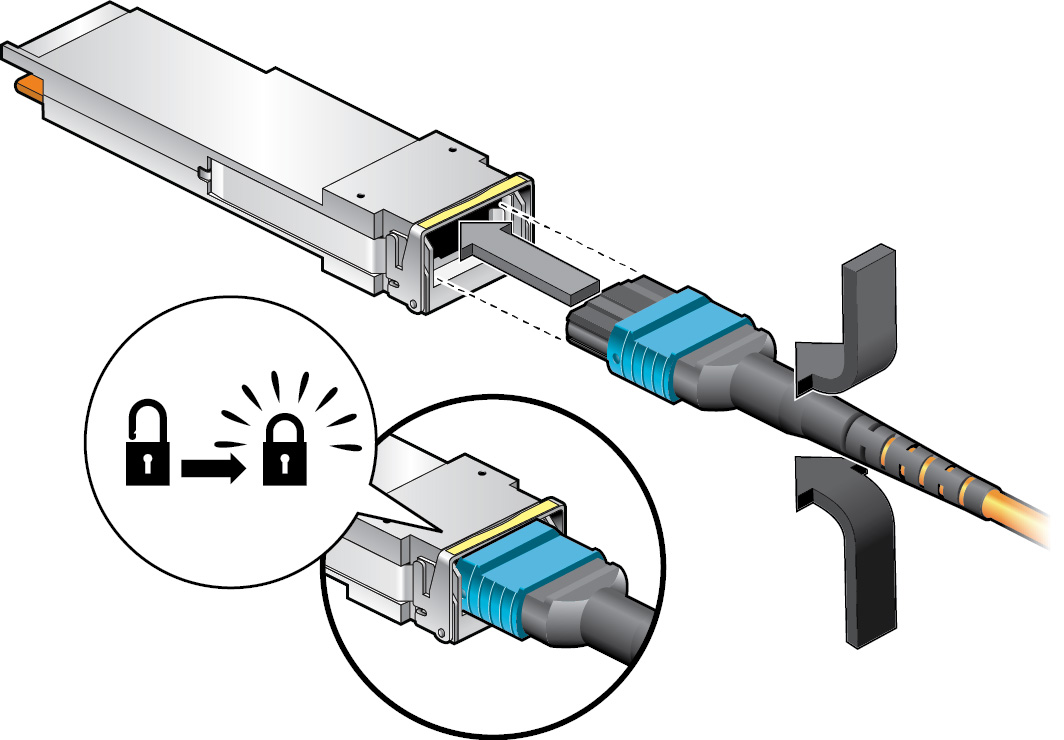

MPO patch cord is often used to connect transceiver modules and fiber adapters. As long as you hear a "click", the installation is complete. The unique design of the MPO|MTP connector makes fiber connection fast and convenient. With pre-termination technology, it adopts completes the high-precision assembly of optical fibers and connectors in a factory environment. During on-site construction, a simple plug-in and unplug operation is required to complete the connection of multi-core optical fibers. This greatly shortens the installation time and reduces the complexity and error probability of on-site construction. According to actual project statistics, the installation time of using MPO|MTP cable for fiber optic wiring can be shortened by more than 50% compared with traditional connection methods.

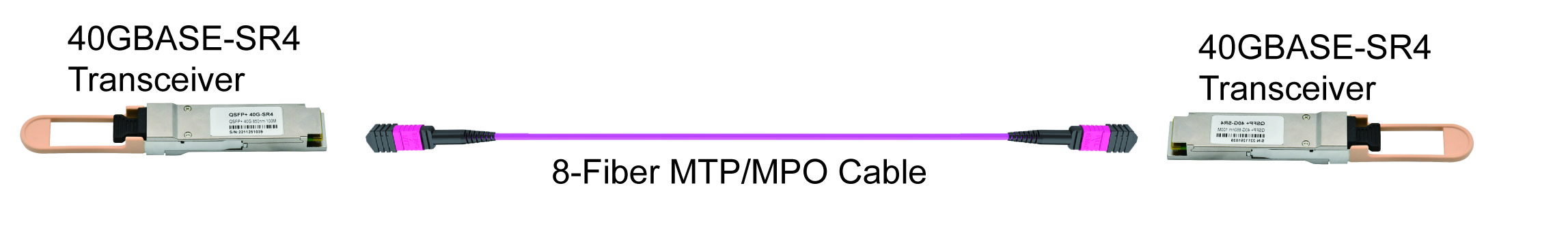

Type 1: Direct connection for 40G to 40G
8C to 8C fiber connection solution is the simplest application solution for Base-8 MTP|MPO cabling. It directly uses 8F MTP|MPO fiber patch cords to connect the QSFP+ optical modules (such as 40GBASE-SR4) at both ends. However, this solution is more suitable for short-distance applications, such as point-to-point interconnection between switches in racks or cabinets.

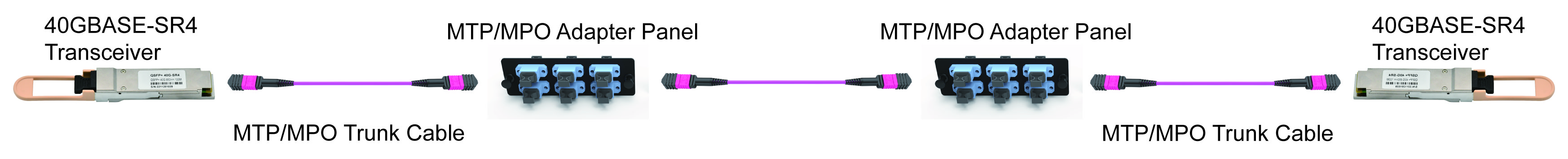

Using MTP/MPO optic patch cord and MTP/MPO fiber adapter panels to replace 8-core MTP/MPO fiber patch cords will be a more practical and stable solution. It can connect more 40G QSFP optical modules through MTP/MPO fiber optic patch cords to establish multiple 40G links.

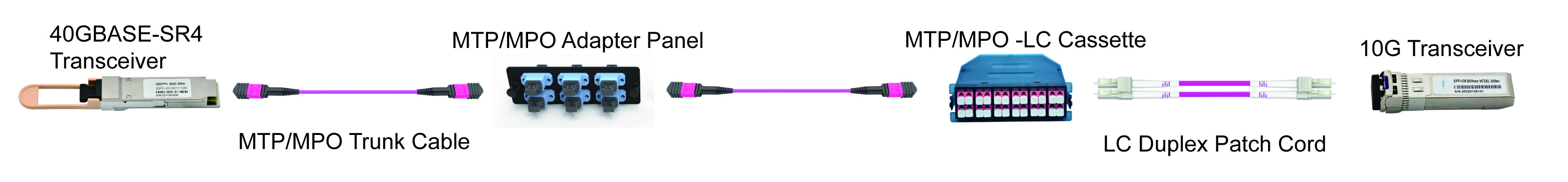

Type 2: For 10G-40G and 25G-100G Network Upgrades
The most direct solution for 10G-40G and 25G-100G network upgrades is to use a 2-core to 8-core fiber connection solution. For example, use an 8-core MTP/MPO-LC fiber patch cord to connect a 40G QSFP+ optical module and four 10G SFP+ optical modules; use an 8-core MTP/MPO-LC fiber patch cord to connect a 100G QSFP28 optical module and four 25G SFP28 optical modules.
It can be 8 12 24 cores.
Type A,type B and type C.
MTP connector is a kind of high performance and MPO connector with multiple innovative design.
MPO|MTP fiber cable can be either male or female.
The polarity and pins of this cable can not be changed, but the MTP PRO cable can support what you want.
Works as i expected. After i received the cable i started using it. It works great.
Product worked great and arrived quickly.
Great product and fair price. Well described and fit in my project perfectly.
The MPO cable was exactly what I needed. The shipping was fast and packaged extremely well.
Works just fine, performs as needed.And the shipping is fast.
