GCYFXTY Air Blown micro fiber optic cable is a technology that minimizes the size of optical cables and pipes by optimizing materials, processes and structures, and laying them by air-blowing method to maximize the use of pipe space. Its characteristics of low loss, high speed and large capacity make it widely used in the field of communication.

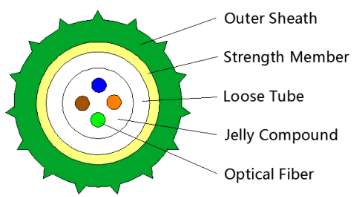

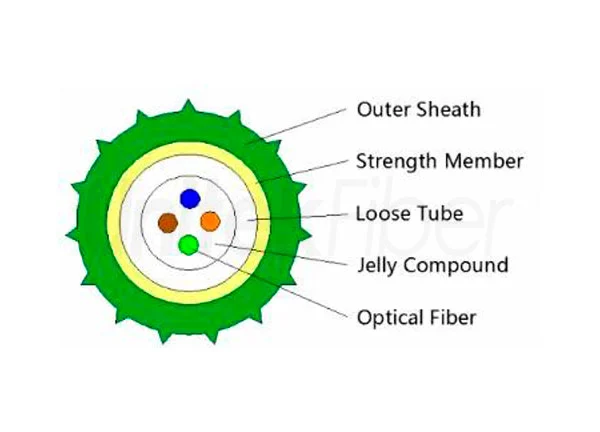

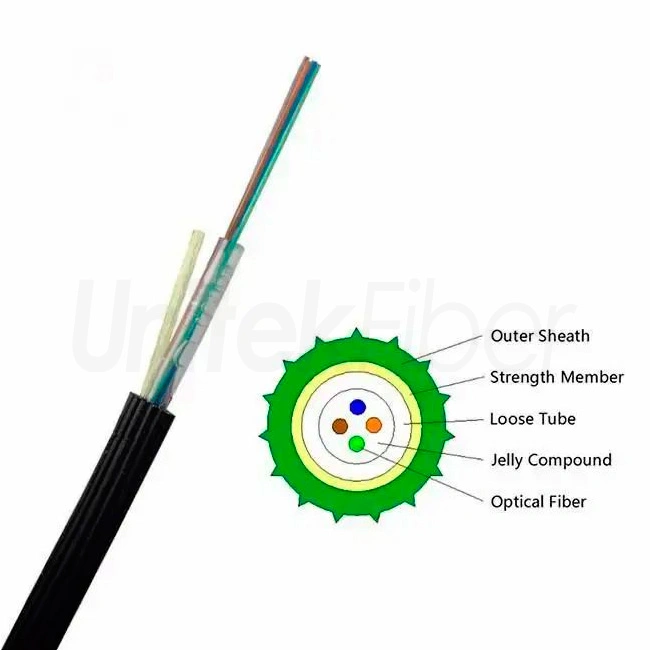

Basic structure of GCYFXTY fiber optical cable
The basic structure of air-blown micro fiber optic cable GCYFXTY includes the following parts:
1. Fiber: The individual fibers within the central tube are made of glass or plastic and are used to transmit digital information in the form of pulses of light.
2. Central Tube: The cable contains a central tube, made of high-density polyethylene (HDPE), which houses multiple fibers. The number of fibers can range from 2 to 288 depending upon the requirements of the installation.
3. Aramid yarn: Aramid yarn offers excellent strength-to-weight ratio, high tensile strength, and resistance to abrasion and heat, making it an ideal choice for this application.
4. Polyethylene Outer Jacket: A rugged outer jacket made of HDPE or MDPE is used to protect the central tube and the fibers from damage. The outer jacket also provides mechanical strength to the cable.
Advantages of GCYFXTY fiber optical cable
1. Compact design: GCYFXTY fiber optic cable has a compact design, which makes it an ideal choice for installations in tight spaces or areas with limited access.
2. Lightweight: The cable is lightweight, making it easy to handle and install. The low weight reduces the load on structures supporting the cable.
3. Air-blown installation: GCYFXTY fiber optic cable uses an air-blown installation method, which eliminates the need for expensive installation equipment and reduces installation time and costs.
4. Durable: The cable outer jacket is made of rugged HDPE material, providing excellent mechanical strength and protection against crushing, impact, and abrasion.
Application range of GCYFXTY fiber optical cable
GCYFXTY optical cable has a wide range of applications due to its unique characteristics and advantages. Some key application areas include: CATV, broadband internet services, data centers, security, surveillance and sransportation, etc. Overall, GCYFXTY fiber optic cable is a versatile and reliable solution for a variety of industries and applications requiring high-speed data transmission, durability, and secure connections.

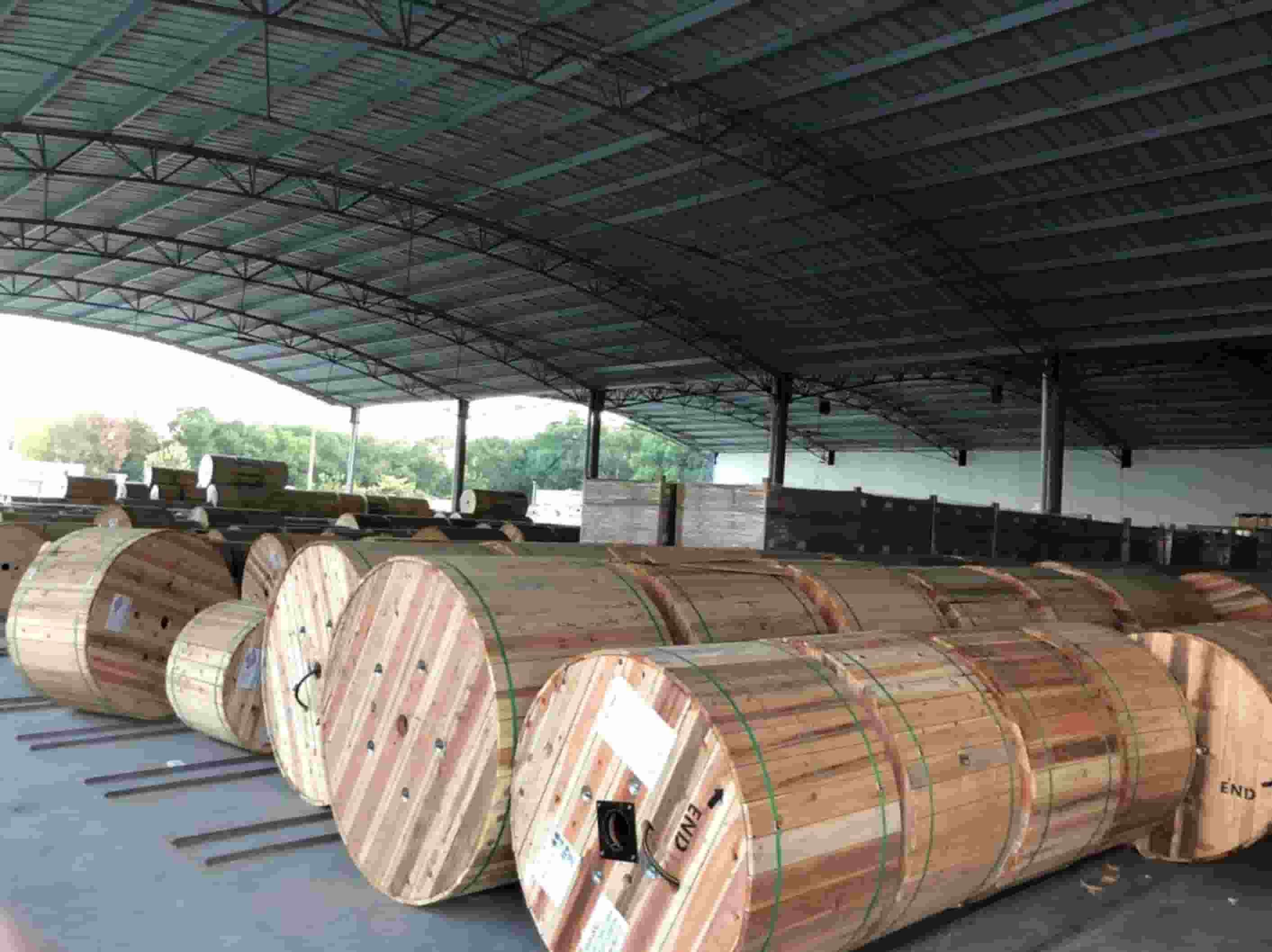

Packing & Delivery of GCYFXTY fiber optical cable
During the transportation of fiber optic cables, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the pipeline. During transportation, packaging materials need to be resistant to vibration and impact. Fillers are added to the inside of the optical cable so that the optical cable will not be displaced or damaged after packaging.
In General, single mode fiber is used for long distances or higher bandwidth needs. Multimode fiber is used for short distances or less bandwidth intensive applications.
Our fiber cable can be bent with diameters of 2.5cm or less.
Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.
If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.
Yes. We supply OEM service. You can send us your drawing.
Not much to say, very competitive price.
Great quality cables, yet nice and cheap and delivered quickly
The order arrived quickly, the price was exceptional as was the quality of the product.
Great vendor, will use them again for sure!
This product is of fantastic value. Very fast service and cheap.
