Rack Mounted Fiber Optic Patch Panels is applied for the connection between Fiber optic cables and fiber optic equipment. By installing fiber optic adapters and fiber pigtails in the fiber patch panel, and plugging in fiber optic patch cords to lead out optical signals to realize the optical cabling function. UnitekFiber is a professional Fiber Optical Patch Panel Manufacturer which is providing OEM/ODM service. We produce 1U, 2U, 3U 4U fiber optic patch panel up to 288 fibers.
A fiber optic patch panel is a centralized connection point that is crucial in managing and organizing network cables in data centers. A fiber patch panel simplifies the process of establishing connections with various devices by allowing easy interconnection of cables through its front panel ports. In fiber optic communication systems, fiber optic patch panels are usually installed in computer rooms, fiber optic corridors etc. to connect different fiber optic terminal equipment and fiber optic patch cords. Available in Single and Multi-mode options, the fiber distribution boxes from UnitekFiber come in 12C, 24C, 36C, 48C, 72C, 96C, 144C and 288C strand variations as well as your choice of LC, SC, FC and ST connector types. Additionally, our fiber distribution frame can be purchased with pre-terminated fiber pigtails and adapter plates. Using these pre-terminated optic patch panel will simplify your network installation and reduce maintenance time.
A rack mount fiber patch panel rack is a device used for organizing and managing fiber optic cable and connections in a standard equipment rack. The fiber optic patch panel is designed to be mounted in a standardized 19 inch equipment rack, typically occupying 1U, 2U, 3U or more spaces depending on the capacity required. Rack mounted optical patch panel come in various configurations and can support different types of fiber optic connectors, including SC, LC, ST, or MPO/MTP connectors. The fiber optical distribution frame allow for easy access, maintenance, and troubleshooting of fiber optic connections within the rack.
Rack mount fiber optic patch panel can be classified based on different factors:
Optical Fiber Capacity: fiber Optic rack patch panel can be categorized based on their optical fiber capacity, which refers to the number of fiber optic connections or ports they can support. They come in various configurations, such as 24 core, 48 core, 96 core or higher, depending on the density and scalability requirements of the network.
Fiber Optic Adapter or Splice Tray: Rack mount fiber optic ODF can be classified as fiber adapter panels or fiber splice trays. Fiber adapter panels have pre-installed fiber optic adapters to directly connect fiber optic patch cable, while fiber splice trays for splicing and organizing fiber optic cables.

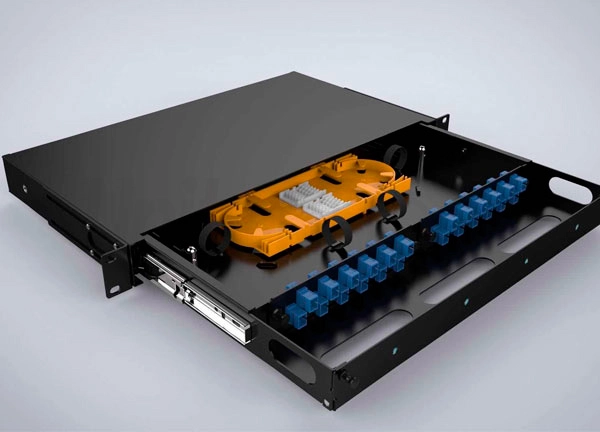

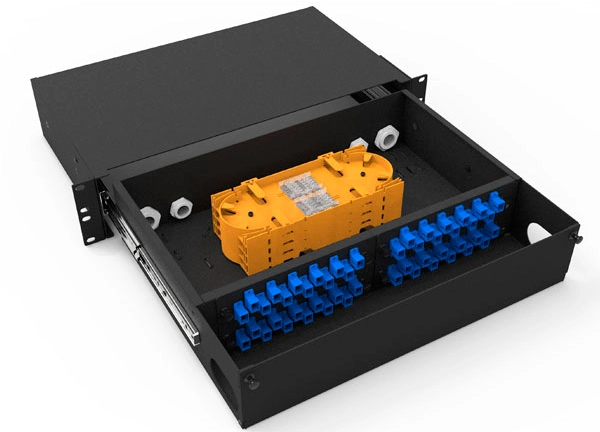

Fiber Optic Enclosure Type: Rack mount fiber distribution box can have different types, such as sliding, fixed, or modular fiber optic enclosures. Sliding enclosures allow easy access to the rear side of the fiber optic patch panel, facilitating cable management. Fixed fiber optic enclosures have a solid structure, while modular fiber optic enclosures offer flexibility in terms of adding or removing components.
UnitekFiber manufactures a series of wall mount optic distribution box and rack mount optic distribution box and splice fiber enclosures. These fiber optic terminal box is economic and convenient for fiber optic solutions. We are so glad to support you and to establish a business cooperation with you. Please contact us at Email sales@unitekfiber.com if you have any inquiry.
