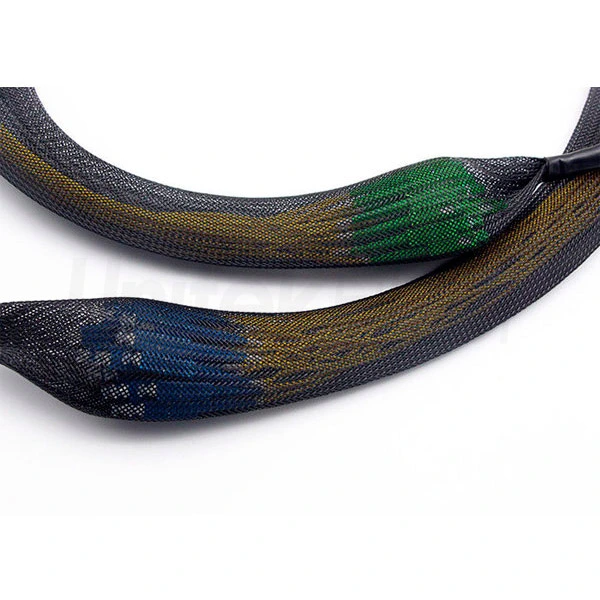

Breakout fiber optic patch cords can separate multi-core optical cable in bundles and install connector plugs to achieve multi-fiber cable splitting connection. Breakout fiber patch cord can reduce complex cable routing, reduce installation costs, and facilitate indoor connection and distribution frames Intensive installation simplifies the end user experience based on fiber optics applications.
Fiber Cable Patch Cord by Unitekfiber are contained with a 0.88mm thick buffer with a 4.5mm diameter complete with Kevlar for additional protection. The length of breakout fiber part is 50cm. Pre-terminated multi-fiber optic fibers consist of optical cable terminated with various types of connectors, such as the ST, FC, SC, LC, MU, MTRJ, E2000 connector types. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. Fiber Optic Jumper come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

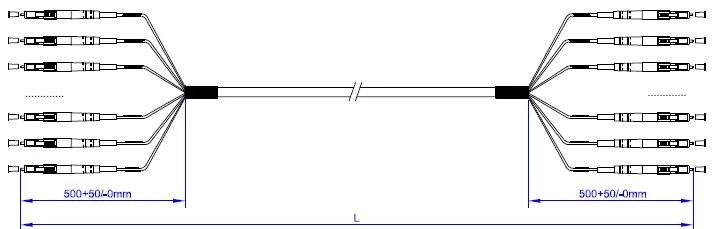

LC Fiber Patch Cord Fanout drawing

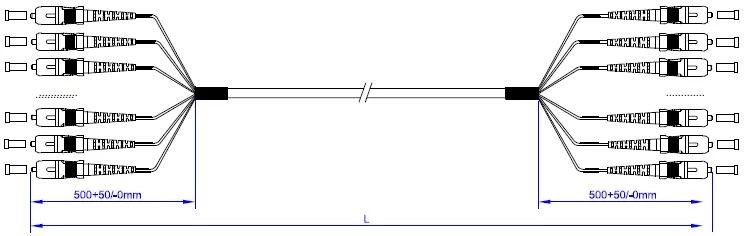

SC Fiber Patch Cord Fanout drawing

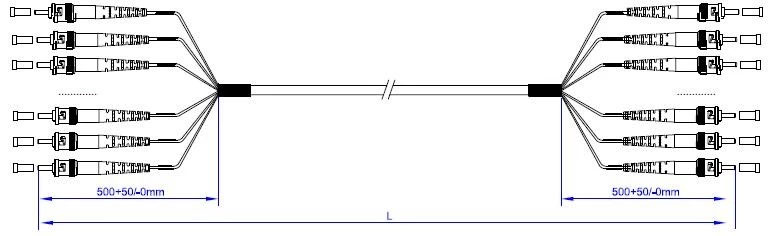

ST Fiber Patch Cord Fanout drawing

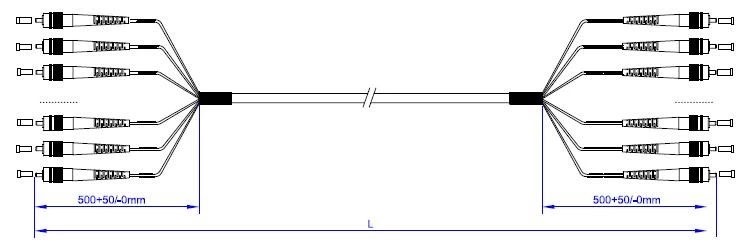

FC Fiber Patch Cord Fanout drawing

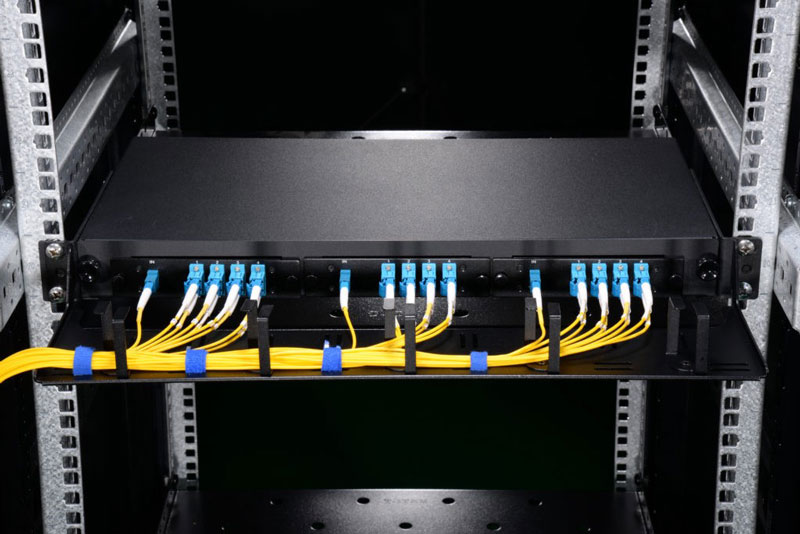

Indoor distribution fiber patch lead are primarily used to cross-connect optic fibers patch panels or distribution center panels. Our premium indoor distribution fiber optical patch cord are assembled with superior quality fiber patch cord and premium LC and SC connectors for high speed, low loss fiber network transmission.

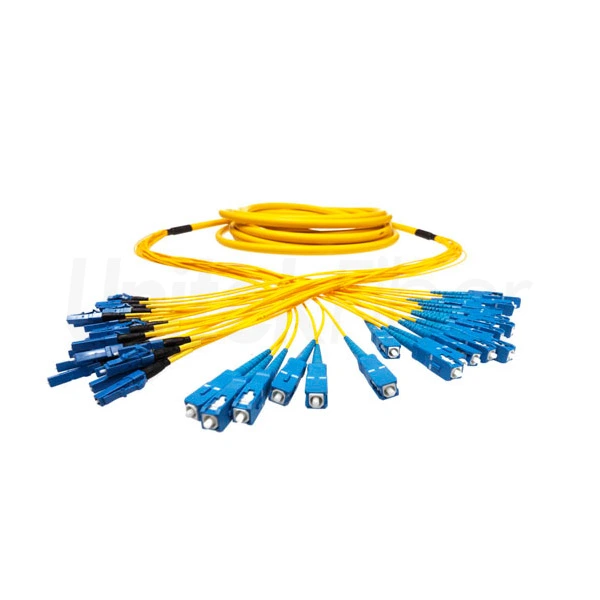

.jpg "SC_to_SC_Breakout_Fiber_Optical_Patch_Cord_32_48Cores_Corning_G657A1_OFNR_Bulk_Fiber_Optic_Cables_(4).jpg")
Hi Dear, Thanks for your question. The breakout length is 0.5m by default.
Hi Dear, Thanks for your question. The max tension of short-term is 600N, for long-term, it's 300N. Thanks.
This cable is made of high-quality materials and is highly durable. It has been rigorously tested and can operate stably for a long time.
We can offer numeric cable markers on the breakouts to help you identify them.
Yes, we could provide 72 fibers and 96 breakout fibers optic patch cord, please kindly contact us for more details.
