The bulk fiber optical patchcord is a low-cost, pre-assembled patch cable designed mainly for indoor interconnection between transmission equipment and patch panels or ODFS etc. The breakout fiber patch cord can be use G657A1/G657A2 fibers, offering a flexible bends for routing the fiber patch cord. And the jacket of fiber optic cable can be OFNR, OFNP or LSZH to meet flame retardant needed. UnitekFiber also provides SC/LC/ST/FC fiber connector selection, all the fiber connectors meet the standard of EIA/TIA 604-2 for high speed cabling networks. The fiber patch cord is including steel tube type, round type, pulling eye type, box type and barrel type, etc..

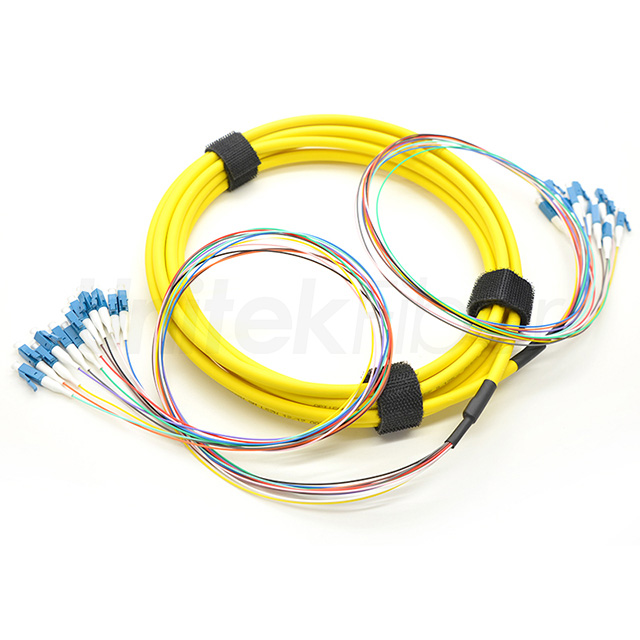

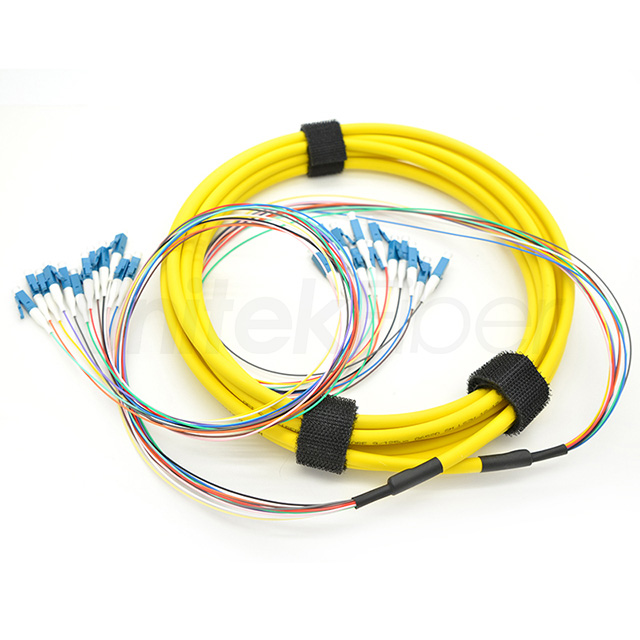

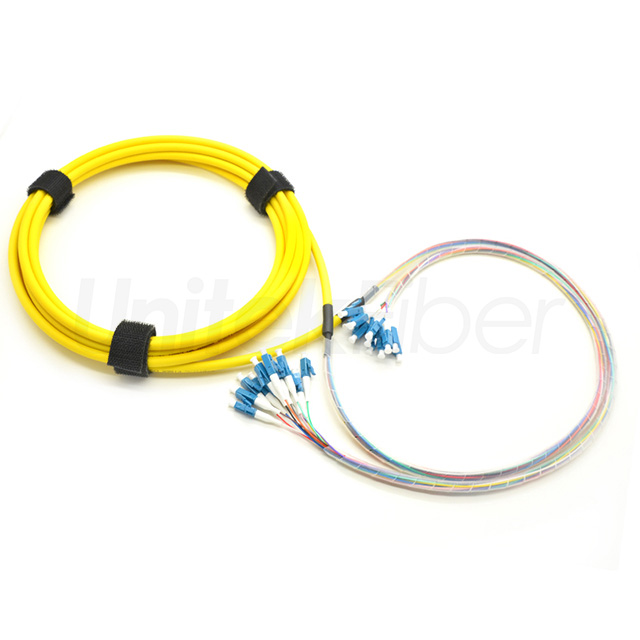

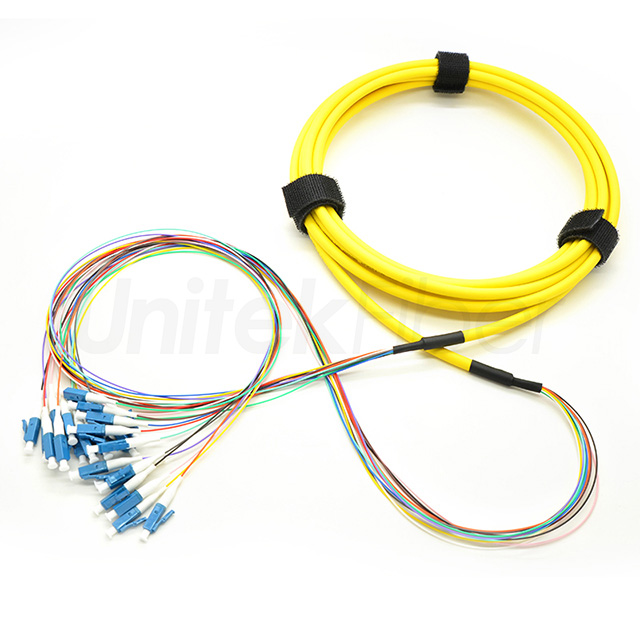

12C/24C/48C fiber optical patch cord by UnitekFiber are contained with a 0.88mm thick and 4.5mm diameter splitter buffer, completing with Kevlar for additional protection. Each single mode breakout fiber jumper comes pre-terminated with LC, SC, ST and FC fiber optic connectors or etc. Single-mode OS2 and Multi-mode OM1/OM2/OM3/OM4 are available to choose. 12C LC/UPC pigtail come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

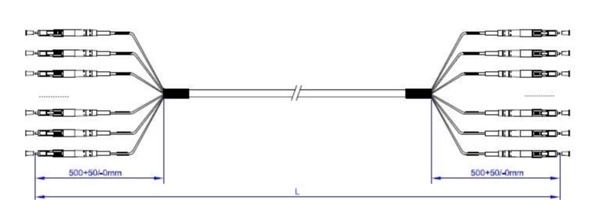

LC/SC/ST/FC Fiber Optical Pigtail Fanout Drawing
Breakout fiber optic patch cord is widely used in FTTH access networks, telecommunication networks, local area networks, fiber-optic CATVs, and many test equipment vendors. Bulk fiber patch cord enable data center management at the physical layer by providing manageability, flexibility, and scalability. Ideal for cabling in high-density data centers but also terminated into rack mount and wall mount enclosures.

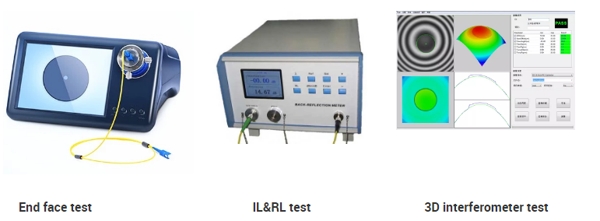

Our test program including: end face test, 3D interferometer test, singlemode IL&RL test, multimode IL&RL test. Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean, <0.25db max for >97% of samples, Return Loss >55dB. Geometrical Characteristics comply with IEC 61755-3-1. And All materials of fiber pitail comply with IEC and ROHS.
Hi, the max tension of 12C/24C short-term is 600N, for long-term, it's 300N. Thanks.
Yes, this optical cable adopts a single-mode design and is suitable for long-distance transmission. Therefore, when connecting servers on different floors, the performance is stable and reliable and the transmission loss is small.
This cable is made of high-quality materials and is highly durable. It has been rigorously tested and can operate stably for a long time.
The branch length of 0.5m is included in the total length. The total length is the distance from the connector ferrule at one end to the ferrule at the other end.
Hi Dear, thanks for your question. We can provide customized patch cords in different colors, such as magenta, light green, pink, etc.
I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.
Using the breakout fiber patch cord in fiber optic patch panel - this is fantastic patch cable. Flexible doesn't hold shape. Very nice to crimp as well.
Many details of the solution were worked out with their technical team and the response was very timely.
Items shipped as describe, very good quality and very fast delivery period.
Purchased a custom fiber pigtail to run from the basement to the third floor of our building and we are very happy with the build quality and the price point. We highly recommend UnitekFiber.
