UnitekFiber Fiber Optical breakout patch lead is a low-cost and convenient fiber accessory for FTTH applications. Our breakout patch lead can be PVC, OFNR, OFNP and LSZH jacket. MU, LC, SC, FC and ST connectors are available for choose. We also can meet customers’ specific requests to be your OEM factory.

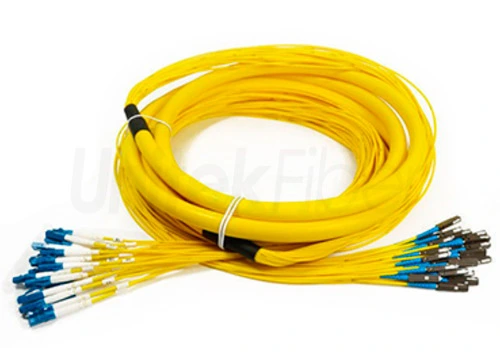

This 32 cores breakout fiber optic patch cord by Unitekfiber are contained with a 0.88mm thick buffer with a 4.5mm diameter complete with Kevlar for additional protection. Each breakout fiber jumper comes pre-terminated with LC, SC, ST and FC fiber optic connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1/OM2/OM3/OM4, and OS2 fiber specifications. This LC-MU fiber optic patch lead comes in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

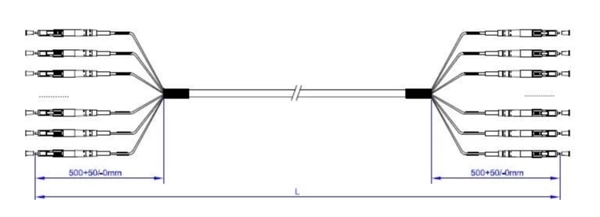

LC/SC/ST/FC Bulk Fiber Patch Cord Fanout Drawing

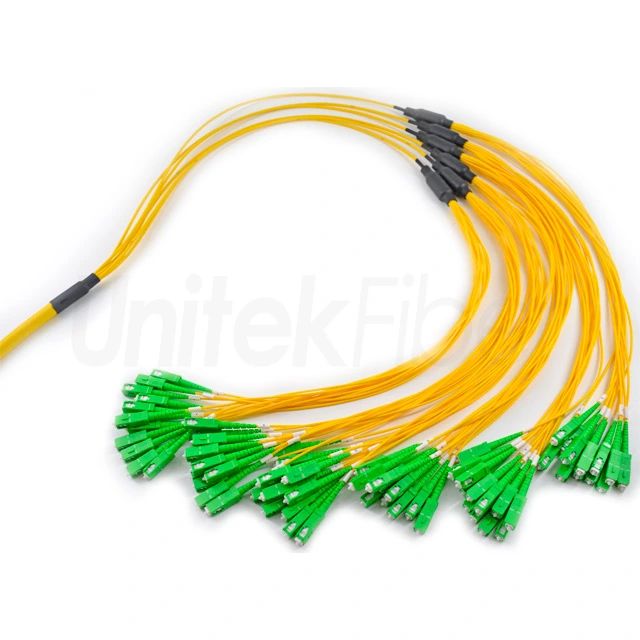

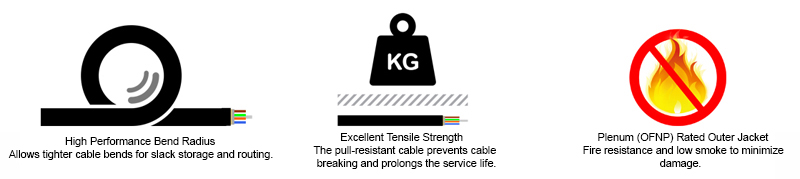

UnitekFber as a professional breakout fiber optic cable manufacturers, we provide OEM|ODM service. The distribution fiber patch cable is available for 4 and 32 fibers (further assemblies, 144 fibers available on request). Supporting option for LC/SC/FC/ST fiber connector, and available LSZH, PVC, OFNR, OFNP jacket to different environmental requirements; Further assemblies, fan-out length and cable length available on request. The optic patch cord provides high performance bend radius by using Corning fiber G657A1/G657A2, allowing tighter cable bends for slack storage and routing. Withstanding 150-300N long term tensile strength, and 300-600N short term tensile strength. The pull-resistant of fan-out fiber patch cord prevents fiber patch cable breaking and prolongs the service life.
LC-MU patch cord is available with different jacket materials, and UnitekFiber provides PVC, LSZH, OFNR, OFNP, and more. The jackets of bulk fiber optic patch cord can have different fire ratings, ensuring compliance with safety standards. LSZH (Low Smoke Zero Halogen) has the characteristics of low smoke, low toxicity, low corrosion, and high flame retardant. As a safe and environmentally friendly material, LSZH is an ideal choice for indoor/outdoor installation. Riser's flame retardant performance is weaker than that of Plenum materials, and it is free of toxic and corrosive gases. Therefore, OFNR grade optical fiber patch cord with riser materials are usually used in building trunk lines and horizontal cables. Plenum is highly flame retardant and does not generate toxic or corrosive gases at extremely high temperatures. Fiber optic patch cord with Plenum material are the first choice for wiring in ventilation ducts or air return pressurization systems used in air handling equipment.
Yes, we can offer duplex connectors for 2.0mm diameter breakouts. For 0.9mm diameter breakouts, duplex connectors are not available.
Yes, we could provide 48 fibers and 96 breakout fibers optic patch cord, please kindly contact us for more details.
We can offer numeric cable markers on the breakouts to help you identify them.
The breakout length is 0.5m by default. But when the total cable length (including breakout length) is not more than 3m, the breakout length is 0.3m by default instead of 0.5m.

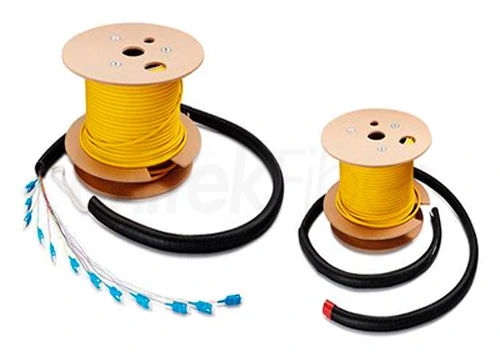

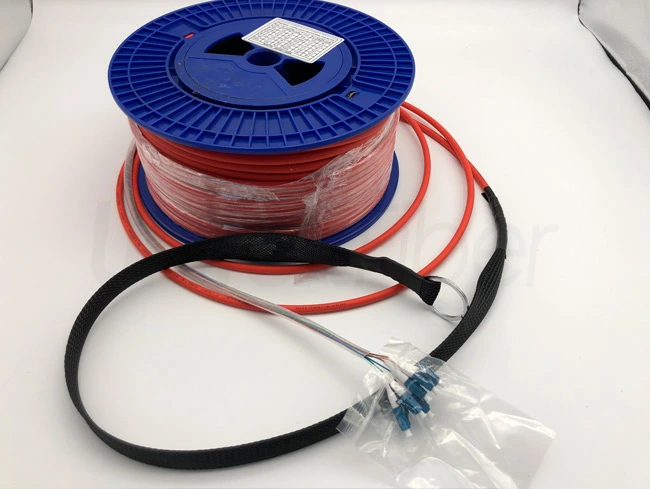

In general, the cable will be packaged with a spool when the length reaches 100m. You can also note for adding a spool before ordering.
